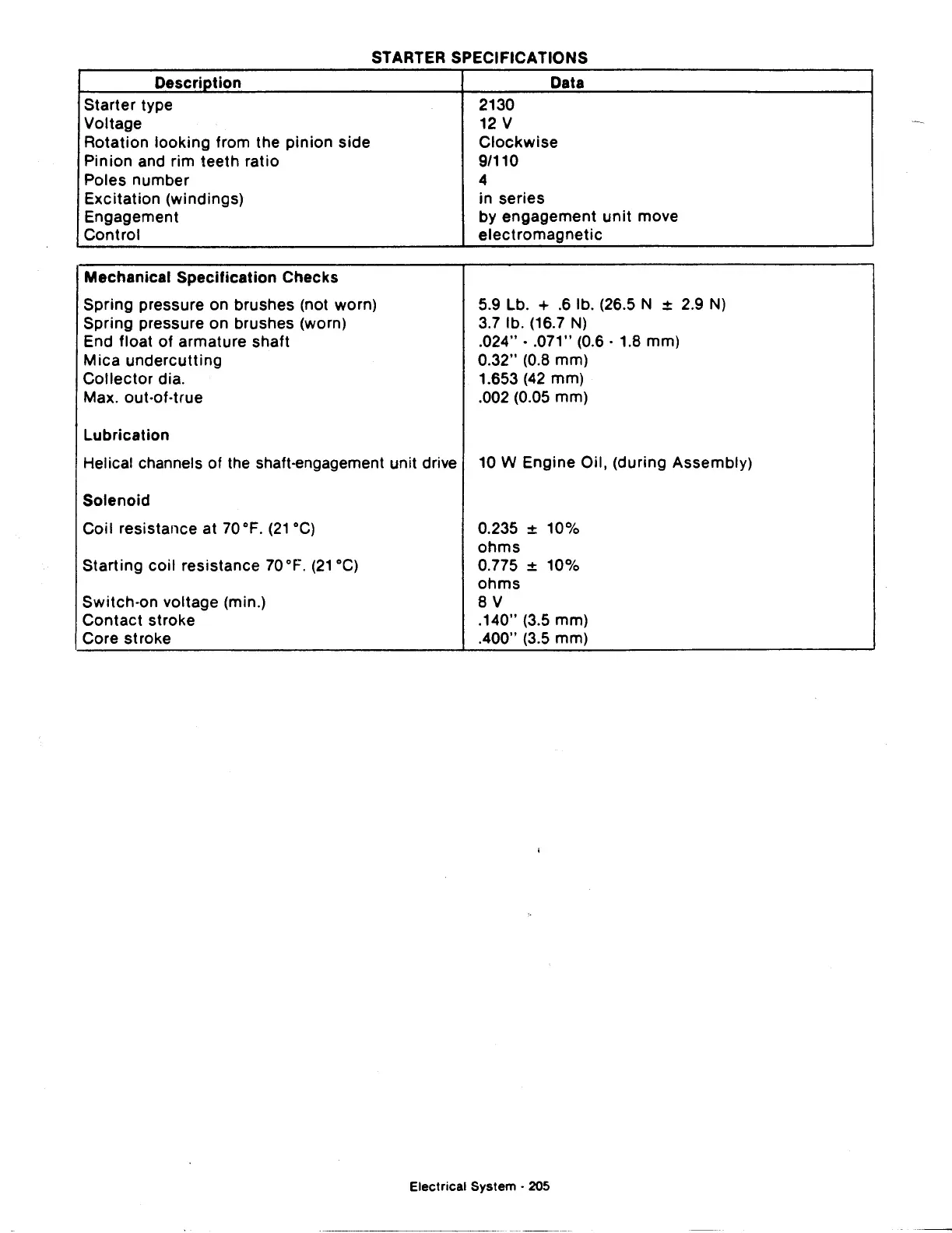

STARTER
SPECIFICATIONS
Description
Starter type
Voltage
Rotation looking from the
pinion
side
Pinion
and rim teeth ratio
Poles number
Excitation (windings)
Engagement
Control
Mechanical
Specification
Checks
Spring pressure on brushes (not worn)
Spring pressure on brushes (worn)
End float
of
armature shaft
Mica
undercutting
Collector
dia.
Max. out-of-true
Lubrication
Data
2130
12
v
Clockwise
9/110
4
in series
by engagement
unit
move
electromagnetic
5.9 Lb. +
.6
lb. (26.5 N ± 2.9
N)
3.7 lb. (16.7
N)
.024" • .071" (0.6 - 1.8 mm)
0.32" (0.8 mm)
1.653
(42
mm)
.002 (0.05 mm)
Helical channels of the shaft-engagement unit drive 10
W Engine Oil, (during Assembly)
Solenoid
Coil resistance at
70
°F.
(21
oq
Starting
coil
resistance
70
°F.
(21
oq
Switch-on voltage (min.)
Contact
stroke
Core stroke
0.235
± 10%
ohms
0.775 ± 10%
ohms
8V
.140" (3.5 mm)
.400" (3.5 mm)
Electrical System · 205
