Set Up and Maintenance
9836 3521 01 151

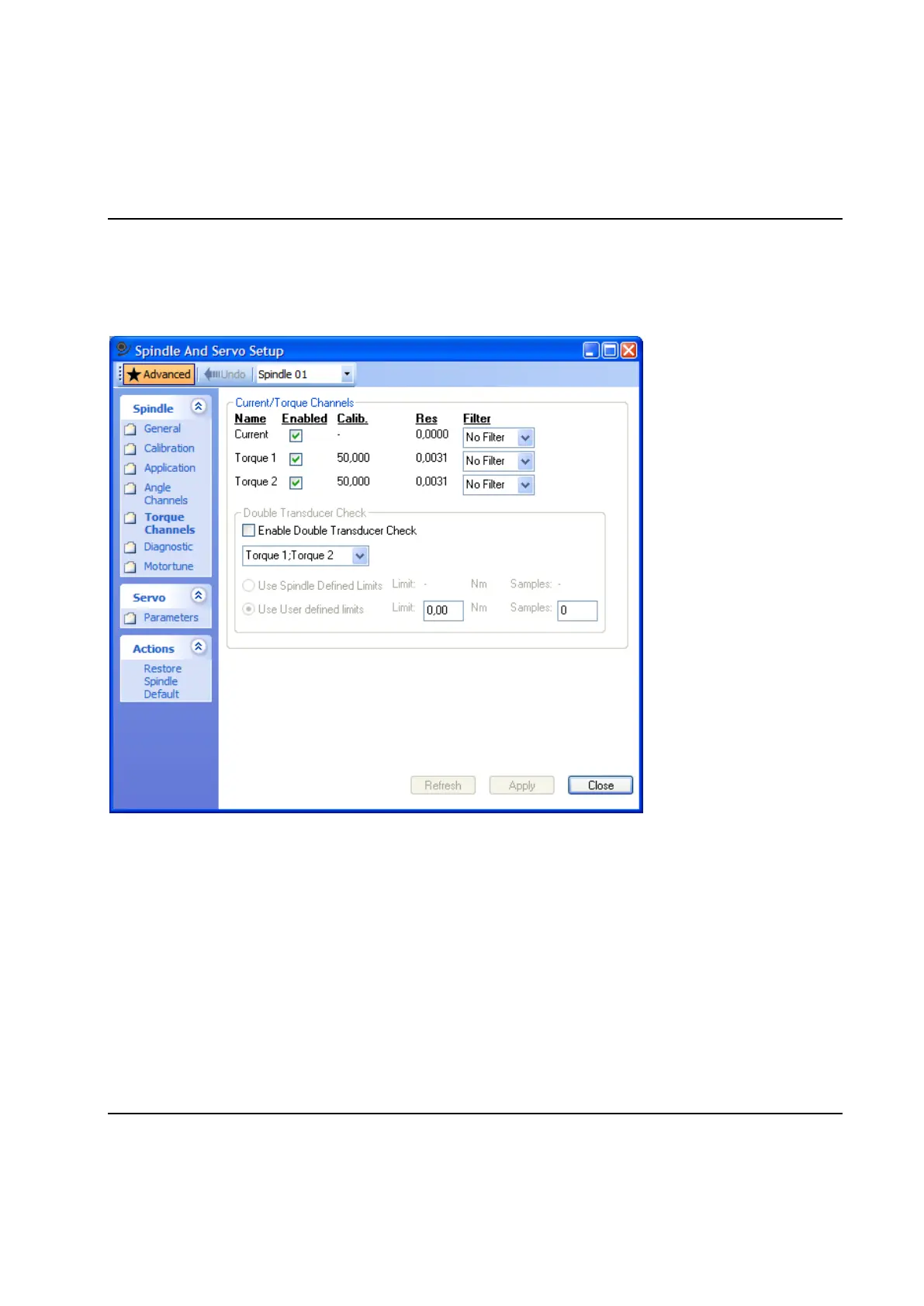

4.6.5 Torque Channels page
The Torque Channels page contain information about the equipped torque channels. It is also possible to
configure the double transducer check here. This page also show information about the current channel.
This page shows basic properties for each equipped torque channel (including the Current channel), it is
possible to disable any channel here by unchecking the Enabled checkbox.
Filter, Hz is the cut-off frequency of the low pass filter used to filter the torque and current inputs. Normally
this should be set to No Filter but can be specified if a certain application requires it.
4.6.5.1 Torque Double Transducer Check
It is possible to configure a default double transducer check to run during cycles.
