3.6.6 View Tightening Path

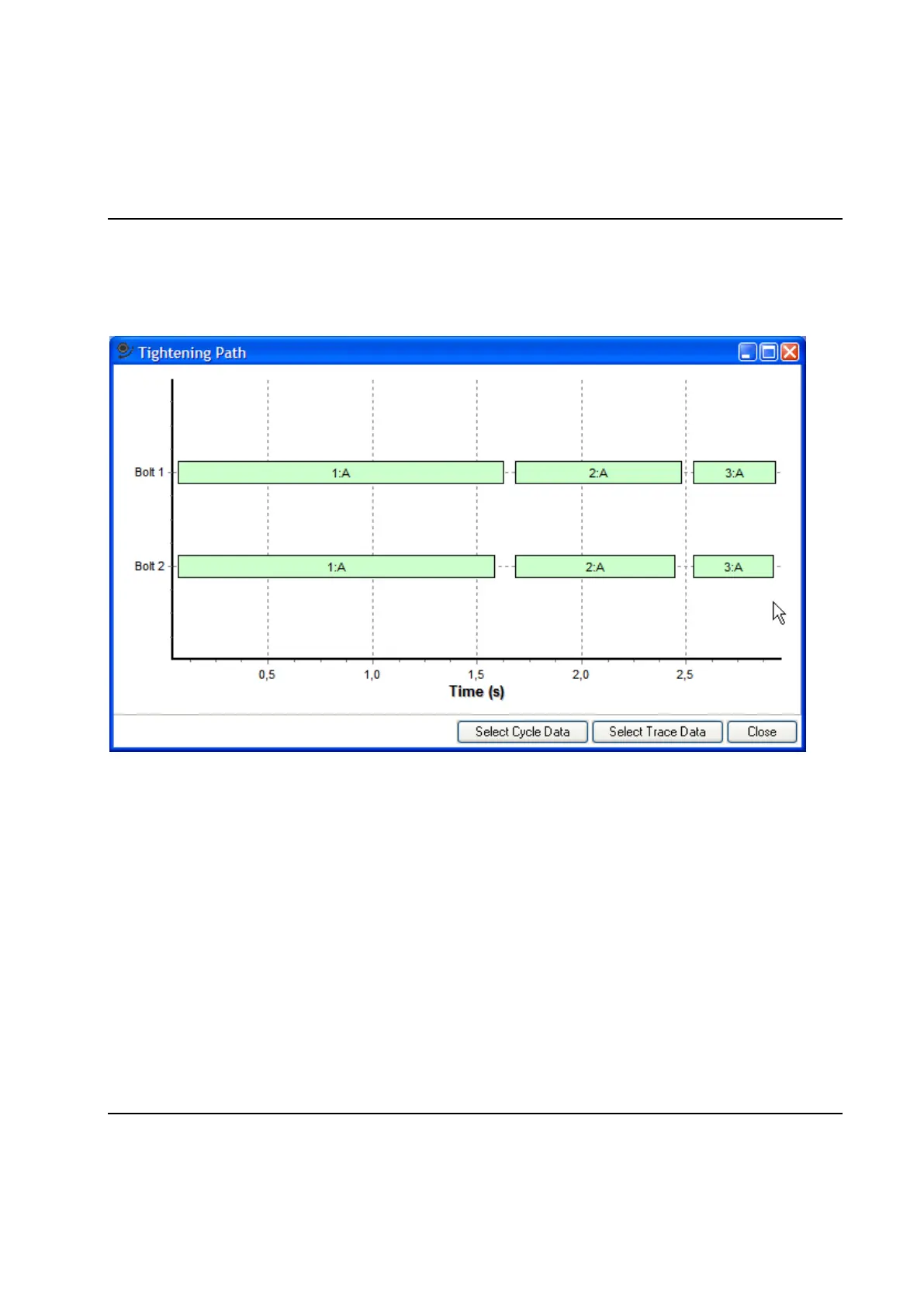

The Tightening Path window displays how one or more bolts executed a cycle as a gantt chart. This layout
makes it more easy to see how reject management procedures affected a cycle.
To display the tightening path for a cycle, either select a cycle data by pressing the Select Cycle Data
button or select one or more traces to compare.
In order to have the step type written for each step in the graph the Step Type cycle data variable must be
present in the Trace reporter.
