Atlas Copco PowerMACS 4000 User Manual

Peripheral Devices
9836 3521 01 529
8.13 Serial Communication
The serial communication devices supports the following protocols:
 Siemens 3964R
 Telemechanique UNI-TE
 SATT Comli
 Allen-Bradley Data Highway (Plus)
 JBUS

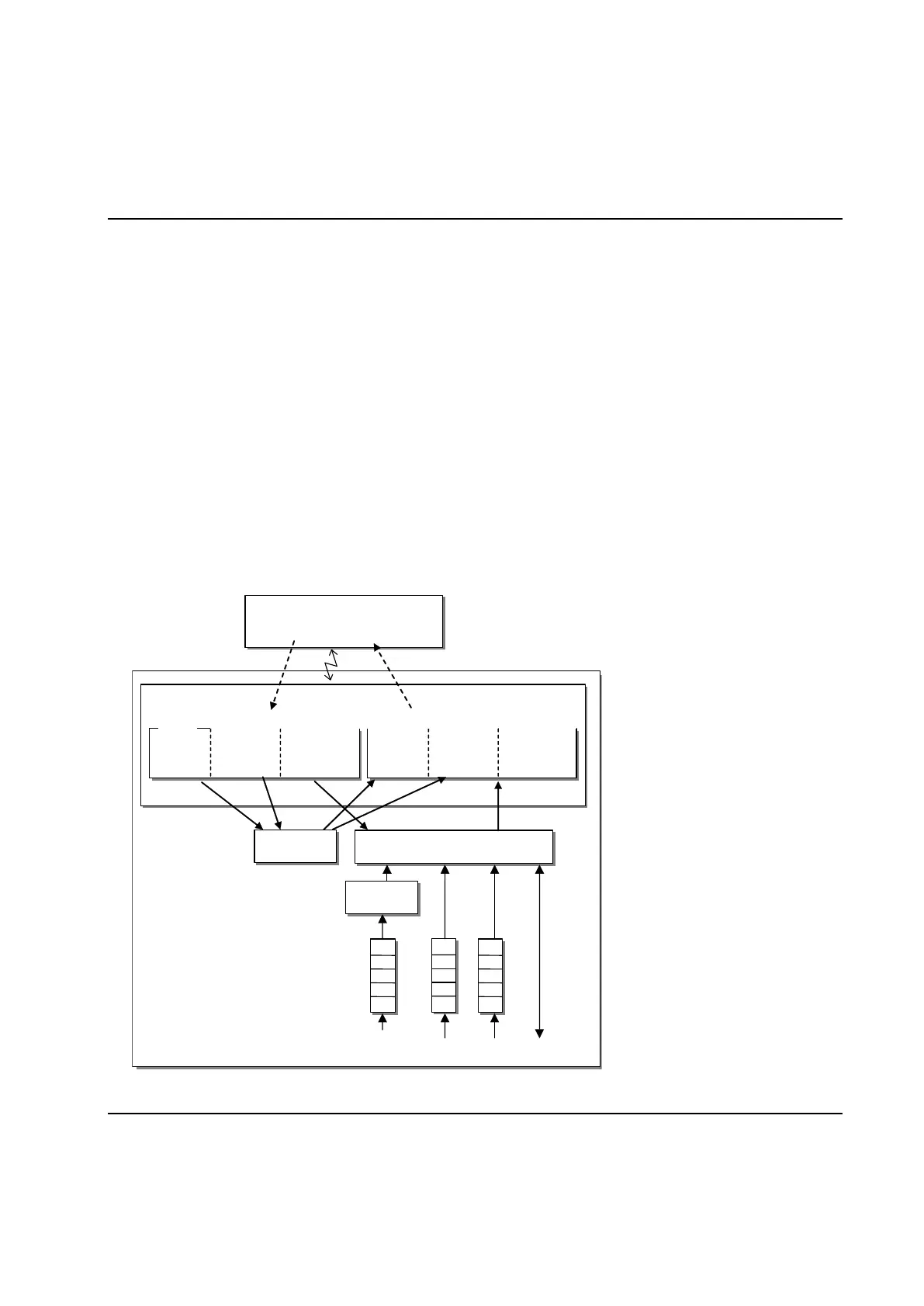

Via an external communication device you can access the following PowerMACS functions:
 Read and write PLC signals
 Read cycle data, events and traces
 Read and write complete setups
PLC
Reporter
Process Data
Events
Traces
Setup
Tightening Controller
Queues
OUT
IN
External Communication Device
Write
Read
PLC PLC Process
area 1 area 2 data
PLC PLC Process
area 1 area 2 data
0-499
2499
2000-2499
500-999
2500-2999
(1000-4000)
(1000-4000)
6000-9999
2499
6000-9999
8000-11999
8000-11999
Cycle
data
Ext. comm. device
