For the Screen, ToolsTalk Printer and Trace reporters you can specify which font to use. Please keep in
mind that you must use a font with fix width to make the variables be printed in columns (for example
when printing cycle data as table as described in chapter: Adding Cycle Data Variables.
Select Variables on the left side of the Reporter window to show the variables to include in the cycle data.
It is possible to select a predefined reporter by clicking the Load predefined settings… located under
Actions on the left side of the reporter window. The list with predefined reporters of the same type as the
currently configured reporter is displayed (see Predefined reporter settings), but it is also possible to
browse freely for any predefined reporter settings. If the chosen predefined reporter settings contain
parameters that are not available or configurable for the currently configured reporter the parameters are
omitted and fix parameters remain unchanged. An example is the trace reporter, which can never contain
station status. If predefined settings containing station status are applied station status will still not be
configured for the trace reporter.
3.7.4.1 Adding Cycle Data Variables
Select Variables on the left side of the Reporter window to show the variables to include in the cycle data.

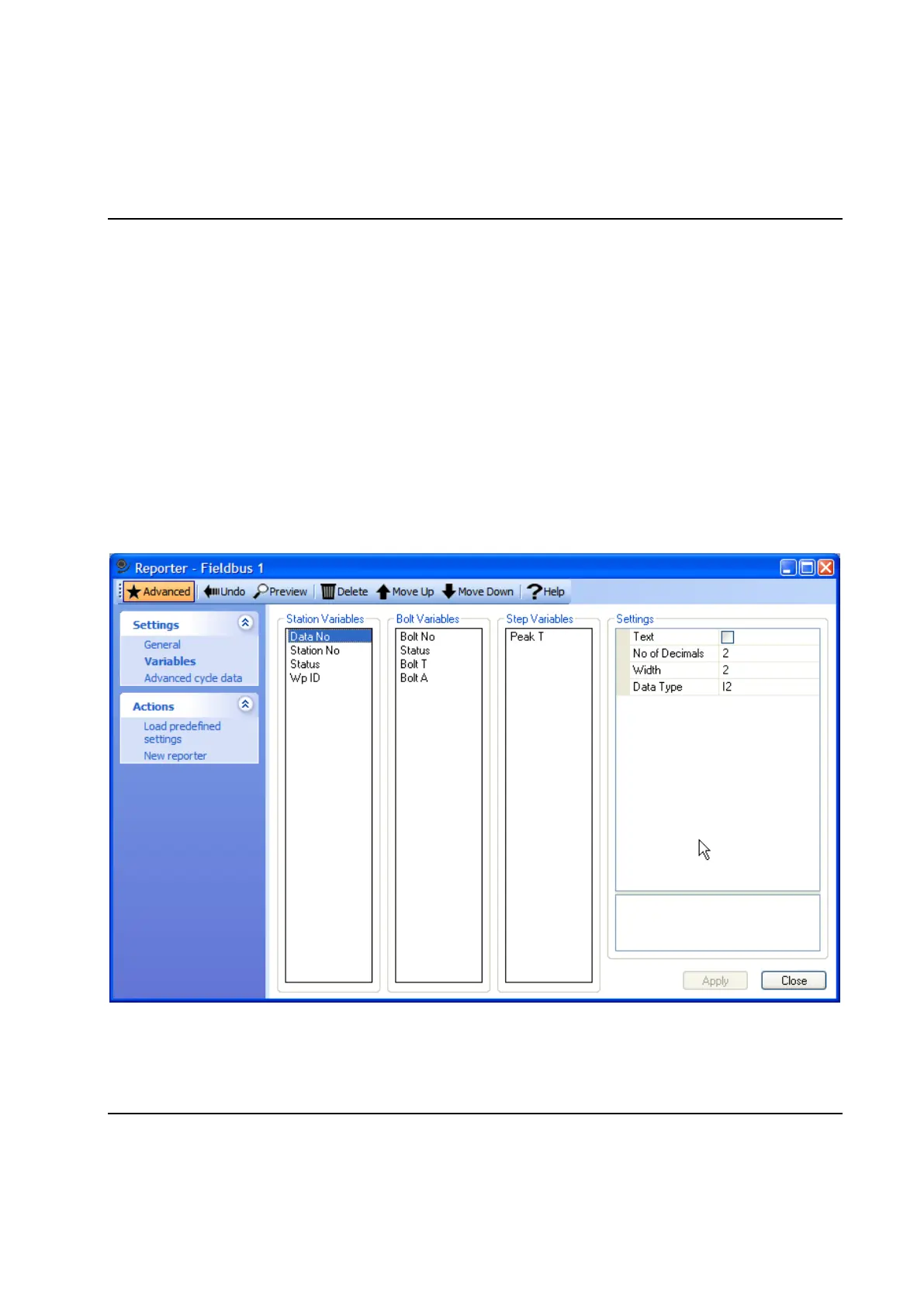

Three list boxes with Station, Bolt and Step variables are presented here. To add a variable simply right
click on any of the listboxes and select Add variable from the menu – a list with possible variables will be
presented. It is possible to hold Ctrl and select more variables at the same time.
