Tightening
326 9836 3521 01
6.5.4.5 Check mean torque
Parameters: MTH (Mean torque high), MTL (Mean torque Low), TI (Time)
Function: The average torque during the last TI seconds of the step is measured. The calculated
value is checked to be between the high limit MTH and the low limit MTL.
Both limits are optional. Leaving them blank disables the check but the result value is still
calculated and reported.
This check requires that at least one sample is collected after the torque spike elimination
phase. If not, and at least one limit is specified, the steps status is set to Fatal and the error
bit of the respective limit is set.

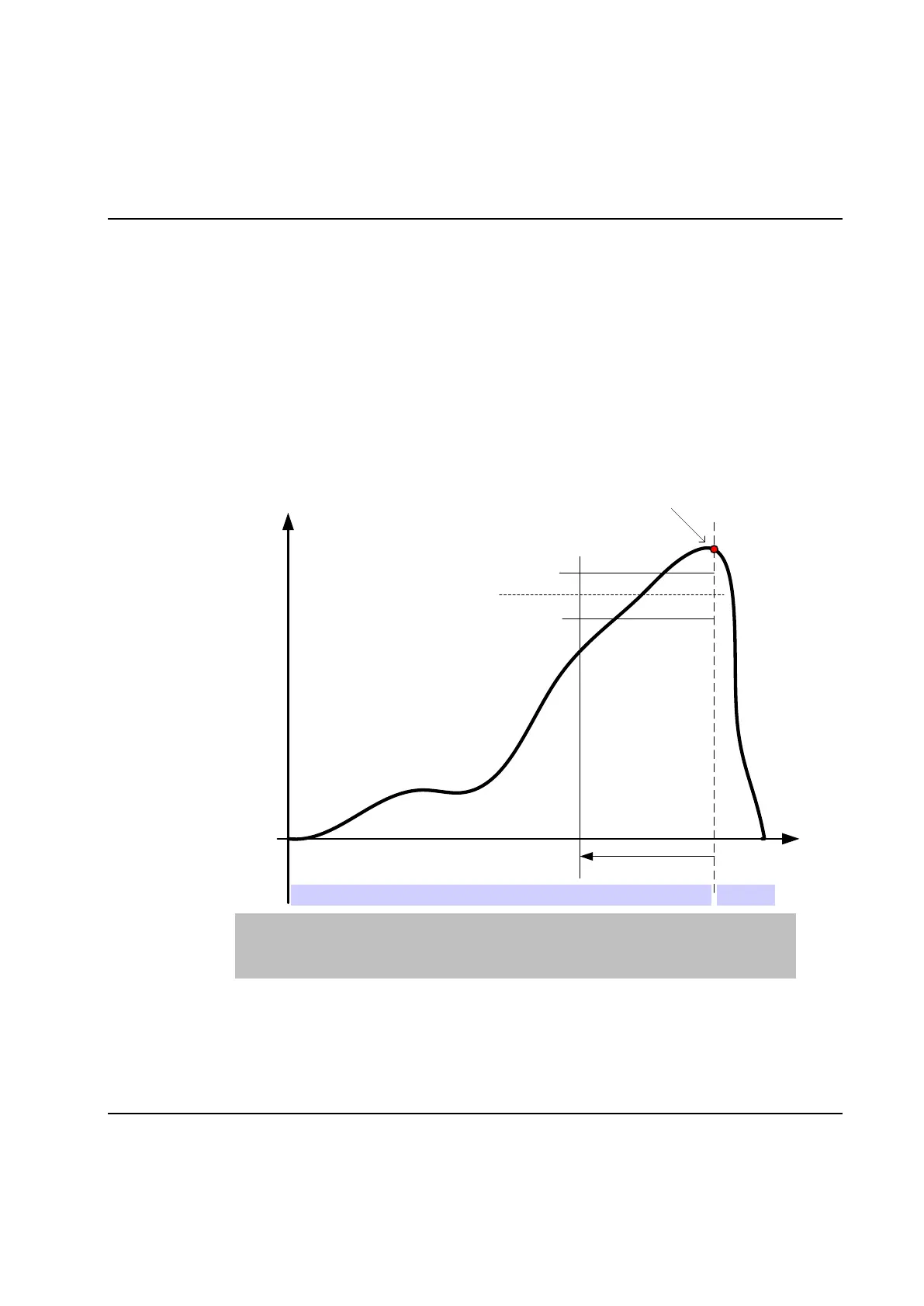

Diagram:
Time
Torque
MTH Mean Torque High OSHT Overshoot time
MTL Mean Torque Low
TI Time
Step
TI
Mean Torque
MTL
MTH
OSHT
Shut-off point
Result var.: "Mean T" (mean torque).
Alarms: Step mean torque high (MTH) and Step mean torque low (MTL).
Trace: There are no limits in trace for this check.
