Tightening
300 9836 3521 01
6.5.2.23 SR – Socket Release
Step type Id: 29
Parameters: A (Angle), DIR (Direction).
Function: Run spindle, in DIR direction, until angle A has passed.. Angle is zero at start of step.
This step performs the same function as a “A - Run until Angle” step with Start condition set
to AS1 except from that nothing that this step does is recorded by the Bolt Monitoring
function.

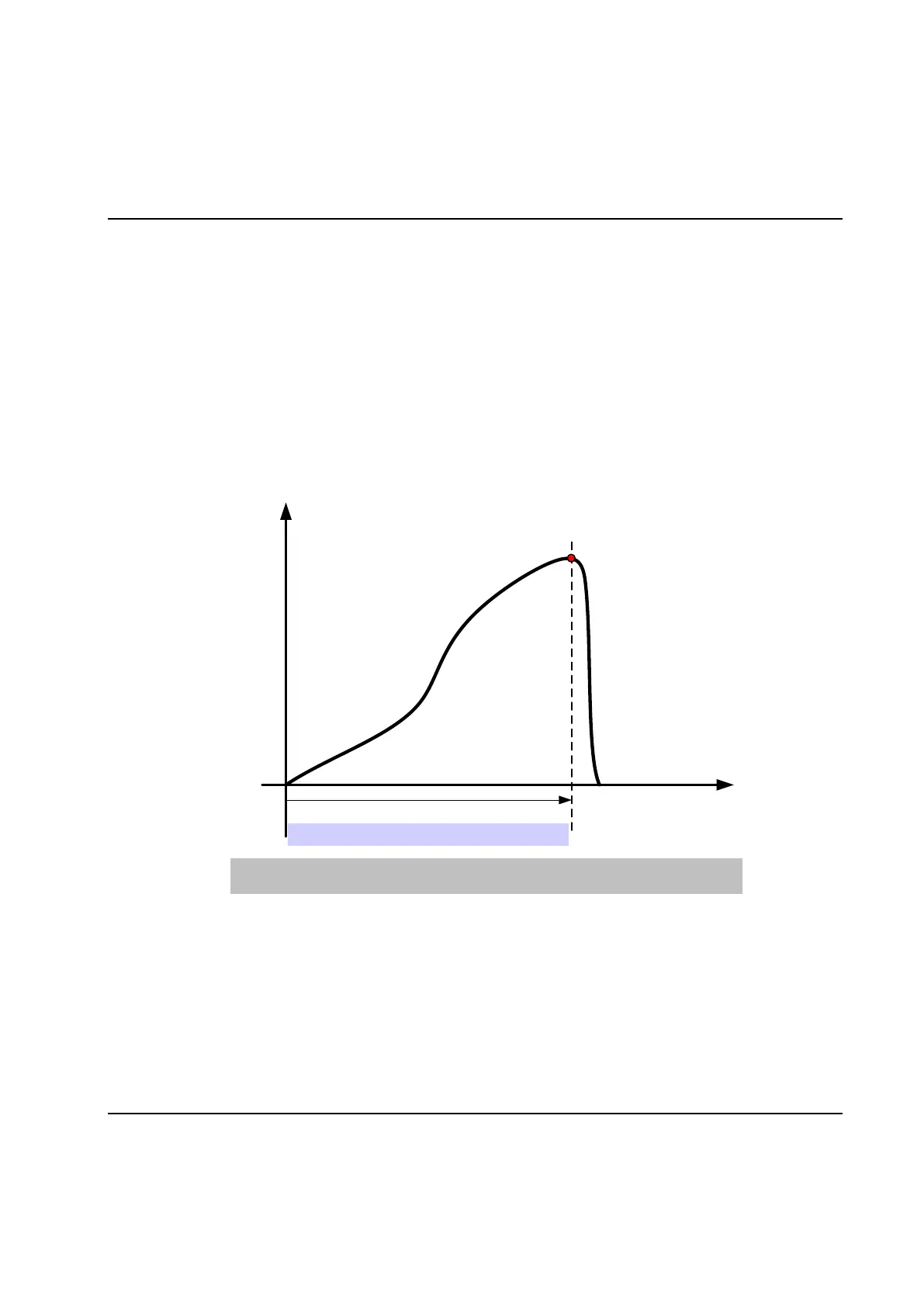

Diagram:
Angle
Torque
A Target Angle
A
Step
Trace: Angle A is shown as a horizontal line from step start to step stop in trace when Angle vs.
Time is selected. Control parameters must be enabled in the trace form (see View of
trace curves).
