8.4 Standard Accessory Devices
The standard accessory devices concists of Stacklight, Indicator Box and the Operator Panel. They are all
communicating using the DeviceNet protocol and can essentially be considered to be specialized I/O
devices.
8.4.1 Stacklight
To access the stacklight configuration window, add a stacklight device and double-click on it in the system
map.
Select the correct MAC Id for the Stacklight. When a new Stacklight device is added a simple default
configuration is provided.

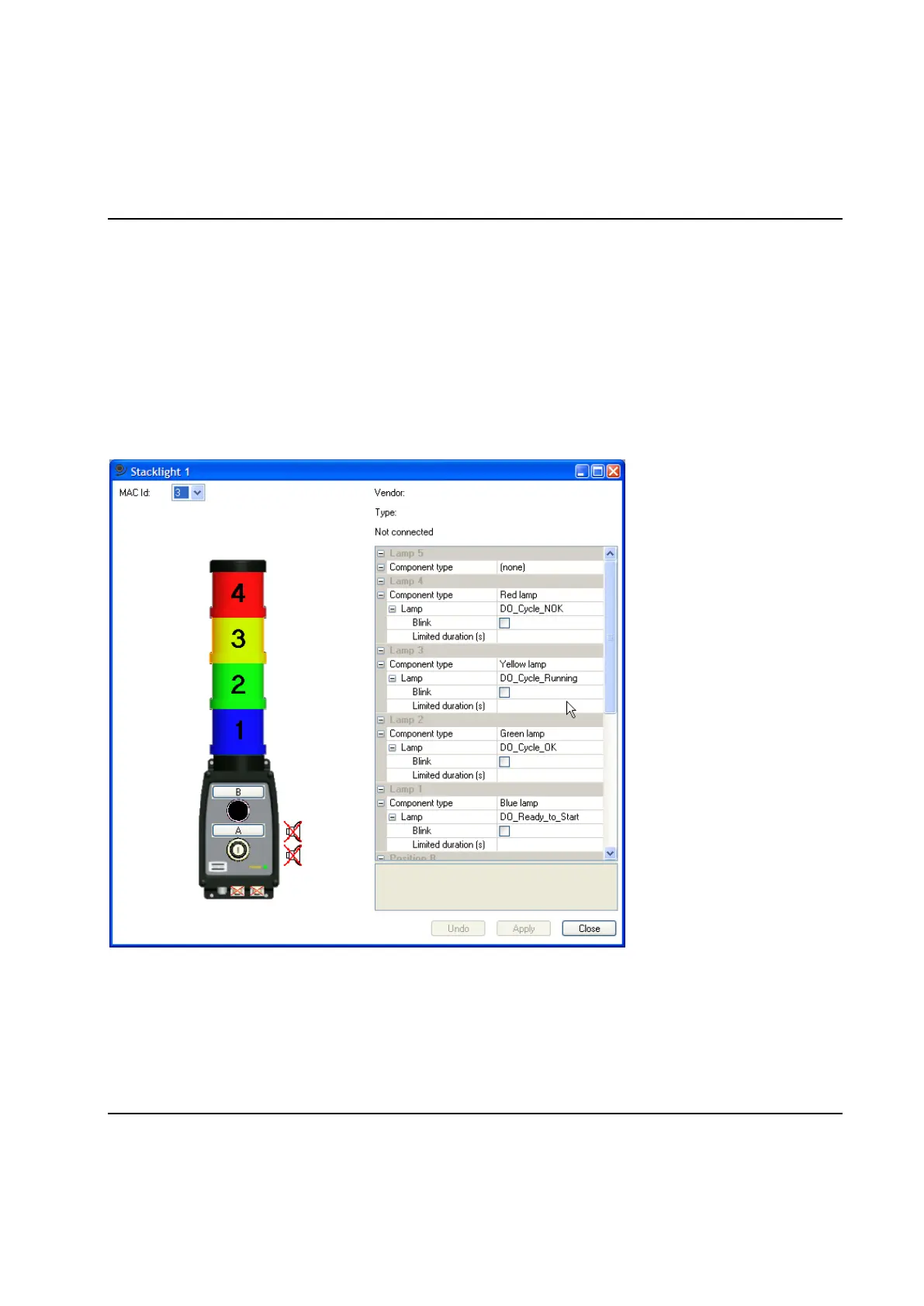

Configure the Stacklight by selecting the component you wish to edit (lamp, buzzer or button) in the
property grid on the right side or by clicking on the actual component in the Stacklight image (this will
cause the correct property to be selected).
