Tightening
9836 3521 01 289
6.5.2.12 PA - Run until Projected angle
Step type Id: 9
Parameters: A (Angle), TC (Torque, TC), INC (Increment), NOS (No degrees), DIR (Direction).
Function: Run spindle, in DIR direction, until projected angle A. Search starts when torque has
reached TC. The average of the torque over NOS angle degrees is calculated. This
procedure is repeated after INC angle degrees. A straight line is calculated through the two
calculated torque average values and down to the x-axis. The projected angle starts from
this intersection.

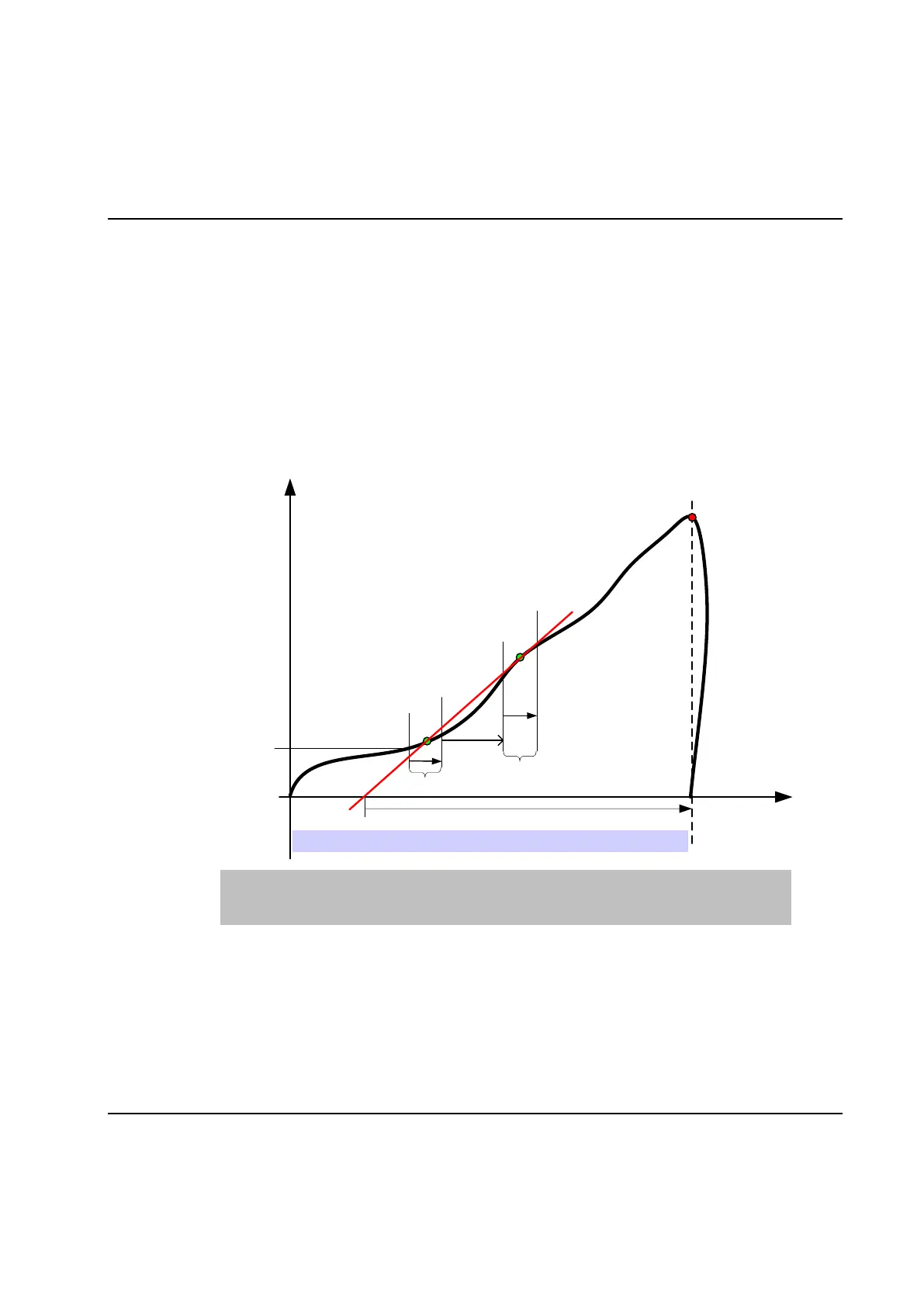

Diagram:
Angle
Torque
TC Torque INC Increment
NOS No. degrees A Projected Angle
TC
NOS
NOS
Step
INC
A
Trace: Torque TC is shown as a horizontal line from step start to step stop in trace when Torque
vs. Time is selected. Control parameters must be enabled in the trace form (see View of
trace curves).
