Peripheral Devices
432 9836 3521 01
8.9.1.3 Allen Bradley escort memory

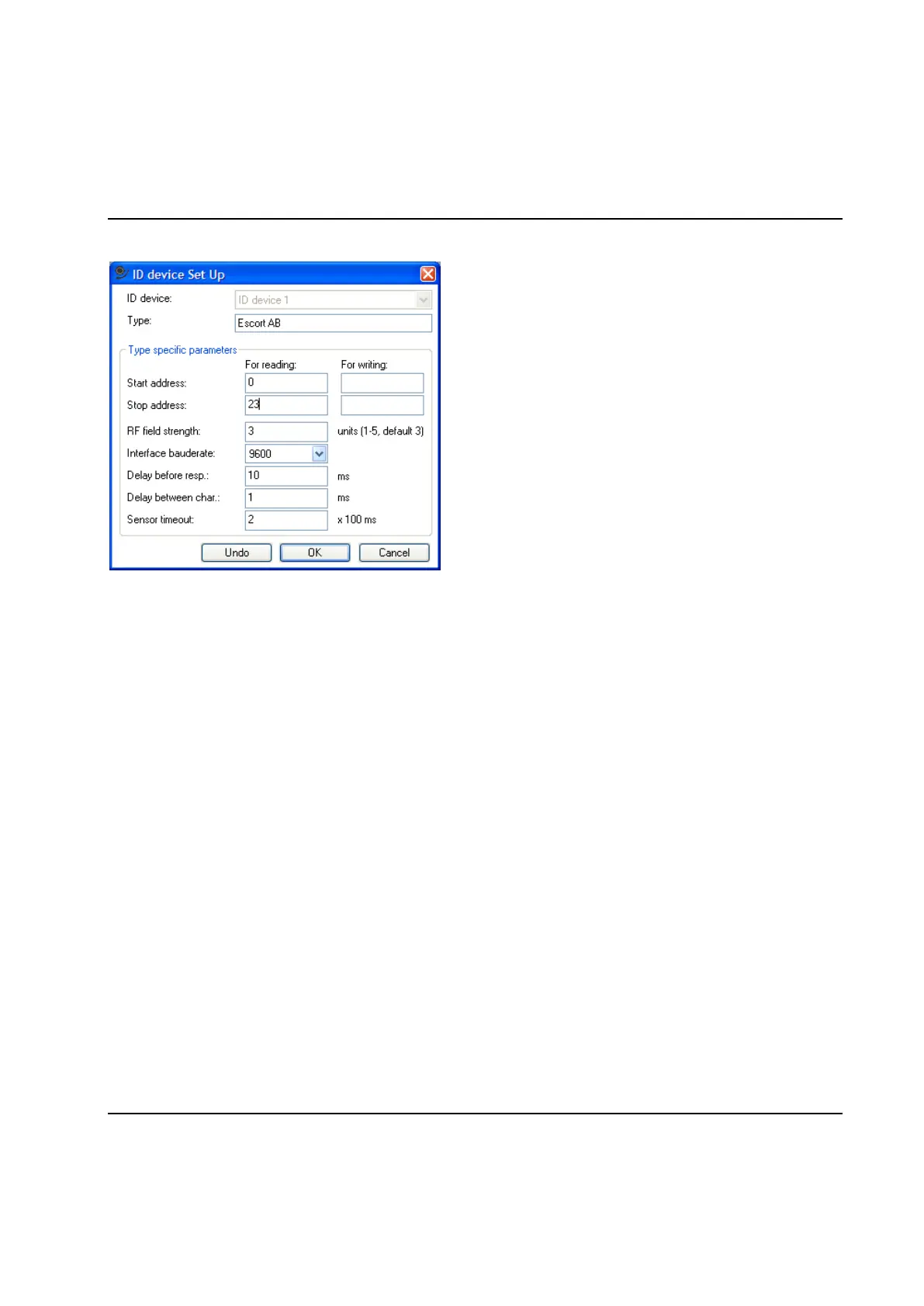

The ID device type Escort AB corresponds to Allen Bradley's Intelligent Antenna 2750-ASP* together with
code tag 2750-TAU40.
For the Allen Bradley Intelligent Antenna escort memory, you must specify where in the data tag to read
the ID string from and where to write cycle data to. Use the two pairs of Start address and Stop address
to do this. The first address in the tag has address zero (0)
RF field strength controls the power of the signal transmitted by the antenna and may need to be
adjusted depending on the distance between the antenna and data tags.
The parameters Delay before resp, Delay between char and Sensor timeout should normally be kept
at their default values.
For more information on these parameters see Allen Bradley's User Manual for the Intelligent Antenna.
