Peripheral Devices
9836 3521 01 463
8.11.4.5 SAW / WIS

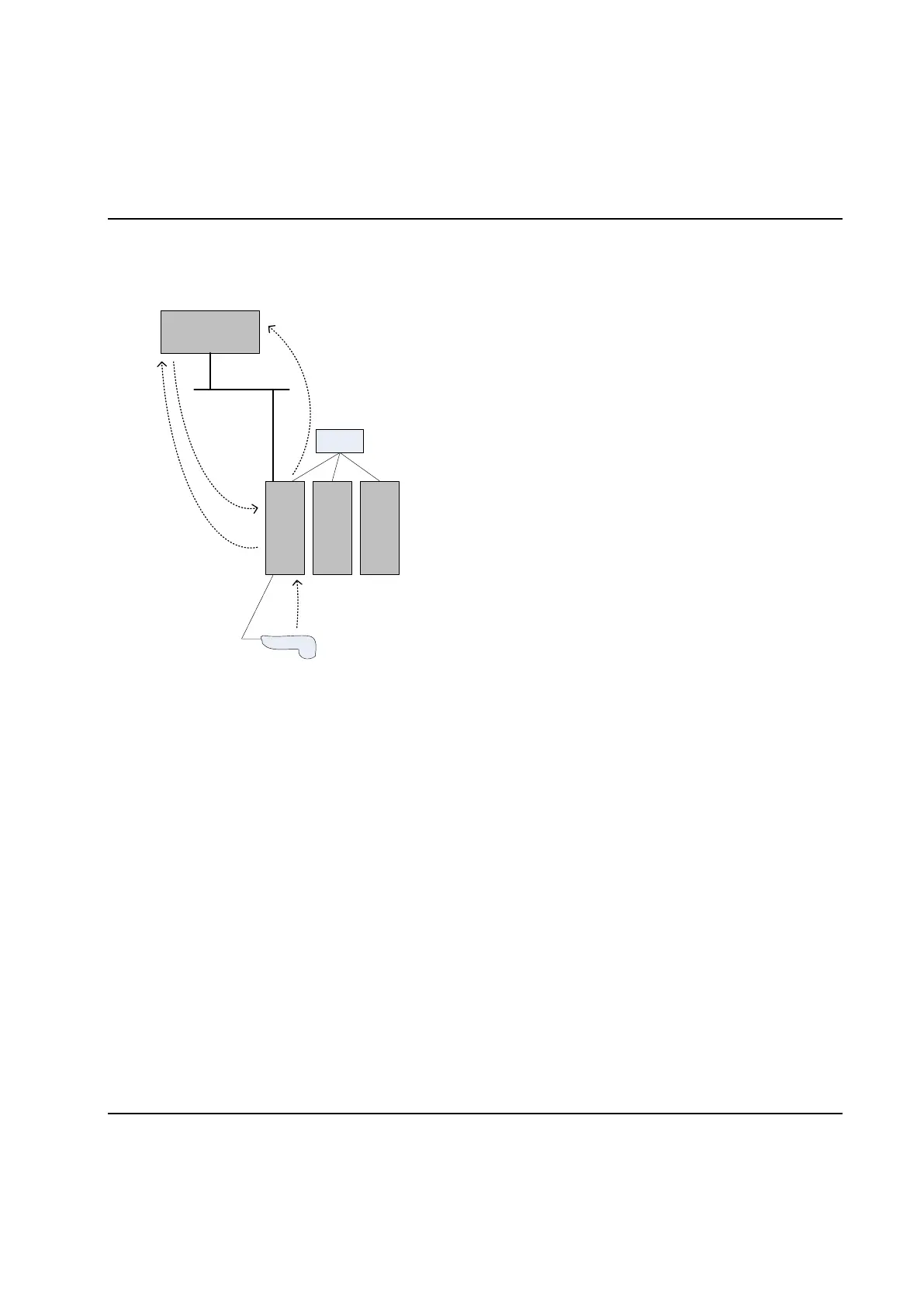

In this station type, a barcode scanner is connected directly to the Station TC.
PLUS
Ethernet
Barcode
scanner
1) PN, KN or LI
2) PN, KN
or LI
3) PN or KN
and TMU
5) Cycle data
TC
2
Switch
TC
3
TC
1
Workflow
1. The PN, KN or LI number is read by the barcode scanner, or automatic scanner, and sent to the
TC.
2. The TC sends a request for TMU to PLUS with the PN, KN or LI that was scanned.
3. PLUS sends the TMU and PN or KN to use for the tightening to the TC.
4. The TC converts the TMU to a mode number and makes the tightening.
5. When the tightening is finished the cycle data is sent to PLUS.
