Basic Functions
9836 3521 01 61

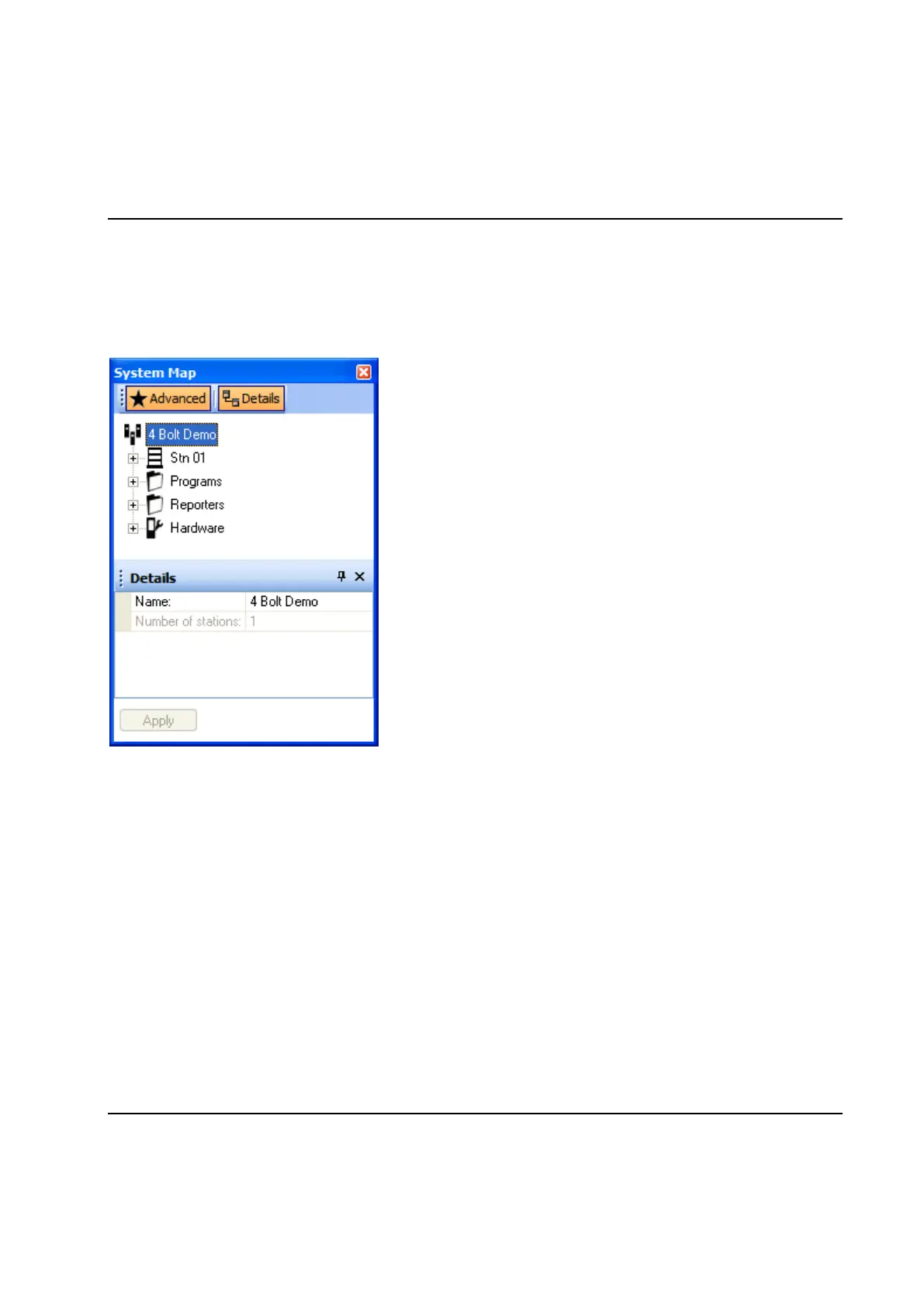

3.6.2 System Map
The System Map gives an overview of all functional parts in the system. It can be used both as an
indicator of current status for all parts, but also as a navigation tool within the system. The default location
for the System Map is on the left side of ToolsTalk PowerMACS but it can be placed anywhere on the
screen.
When first started the System Map displays a page with the system shown in a tree structure. You can
expand and collapse the tree structure by pressing the small squares with + or -, or clicking on items.
