CONTROLLER BOARD
G338/G339 2 SM
1.2 CONTROLLER BOARD

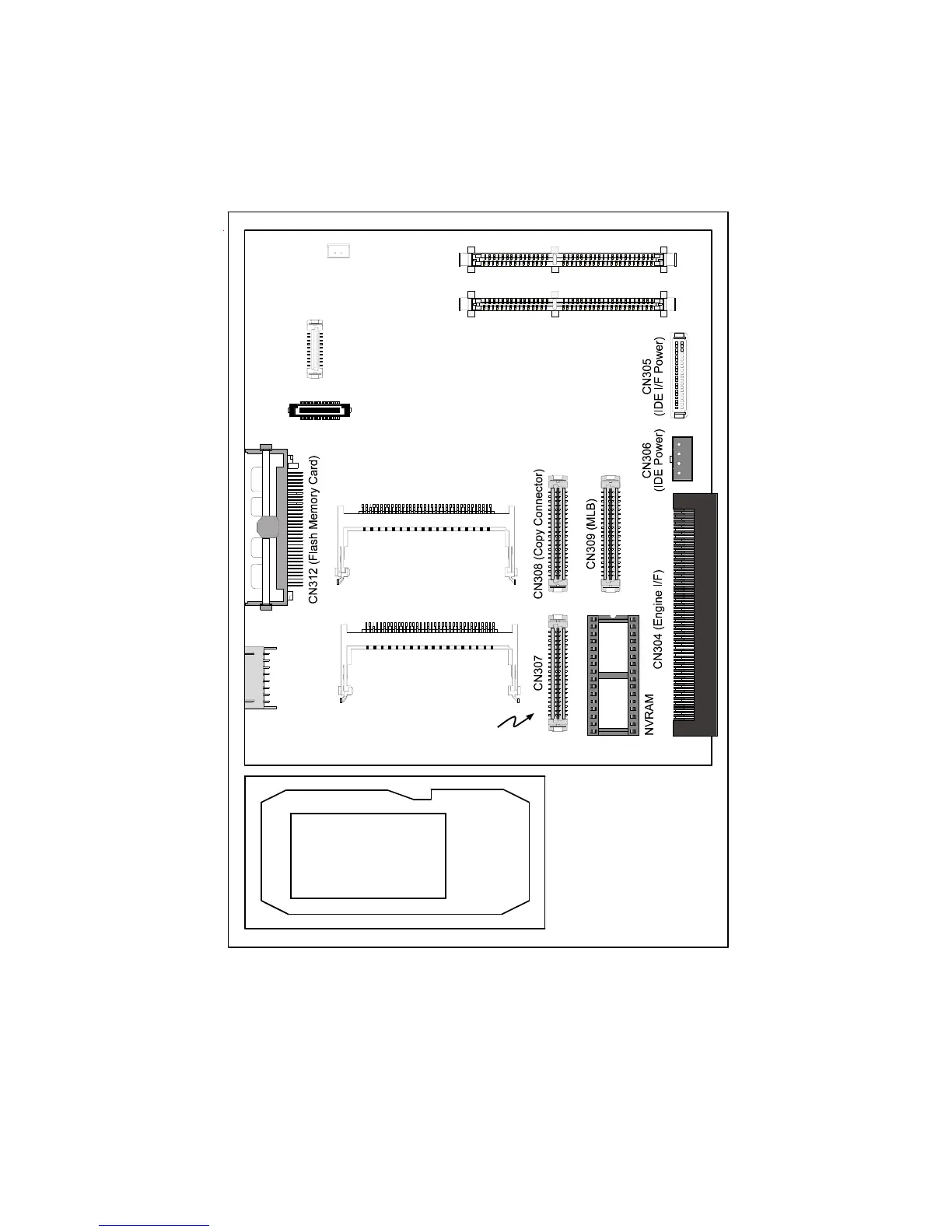

1.2.1 CONTROLLER BOARD LAYOUT
CN314
(FAN Power Supply)
CN311
(Centronics I/F)
CN311 (NIB)
CN300
CN301
(128MB Memory)
(Option Memory)
(USB 2.0)
(IEEE 1394 Firewire)
(802.11b Wireless LAN)
CN303
Slot 2
(PS3)
CN302
Slot 1
(Printer Scanner DIMM
or Printer DIMM)
CN313
(Debug)
HDD
G338D999.WMF
