OVERVIEW
B468/B469/B674 24 SM
2. DETAILS

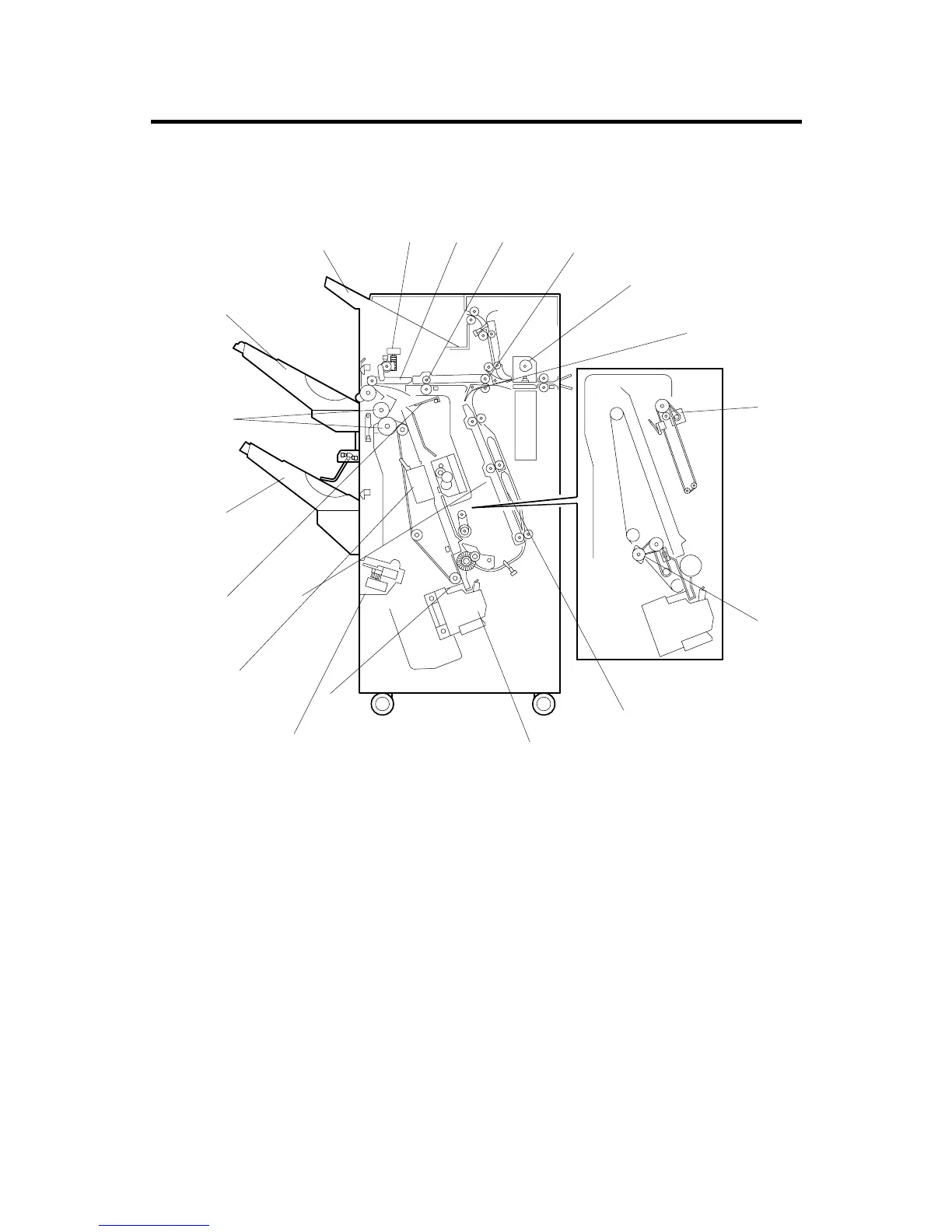

2.1 OVERVIEW
1. Proof Tray
2. Guide Plate Motor
3. Guide Plate
4. Shift Roller
5. Tray Junction Gate
6. Punch Unit
7. Stapler Junction Gate
8. Pre-Stack Tray
9. Stapler Unit
10. Pressure Plate Unit*
11. Saddle Stitch Stapler*
12. Folder Plate*
13. Lower Tray*
14. Folder Rollers*
15. Upper Tray
16. Jogger Top Fence Motor**
17. Jogger Bottom Fence Motor**
* B468/B674 Only ** B674 Only
B468D900.WMF
11
12
2 3 4
5
1
6
7
8
9
10
13
15
14
11
12
16
17
