FUSING UNIT
B064/B140 Series/G126 3-82 SM
3.9.13 FUSING/EXIT MOTOR
Rear upper cover ( 3.3.5)
Open the I/O board ( x 2)
[A]: CNB bracket ( x 4, x all)
[B]: Timing belt
[C]: Fusing/exit motor bracket ( x 1)
Fusing/exit motor ( x 2)
• The fusing/exit motor (not shown) is inside the bracket.

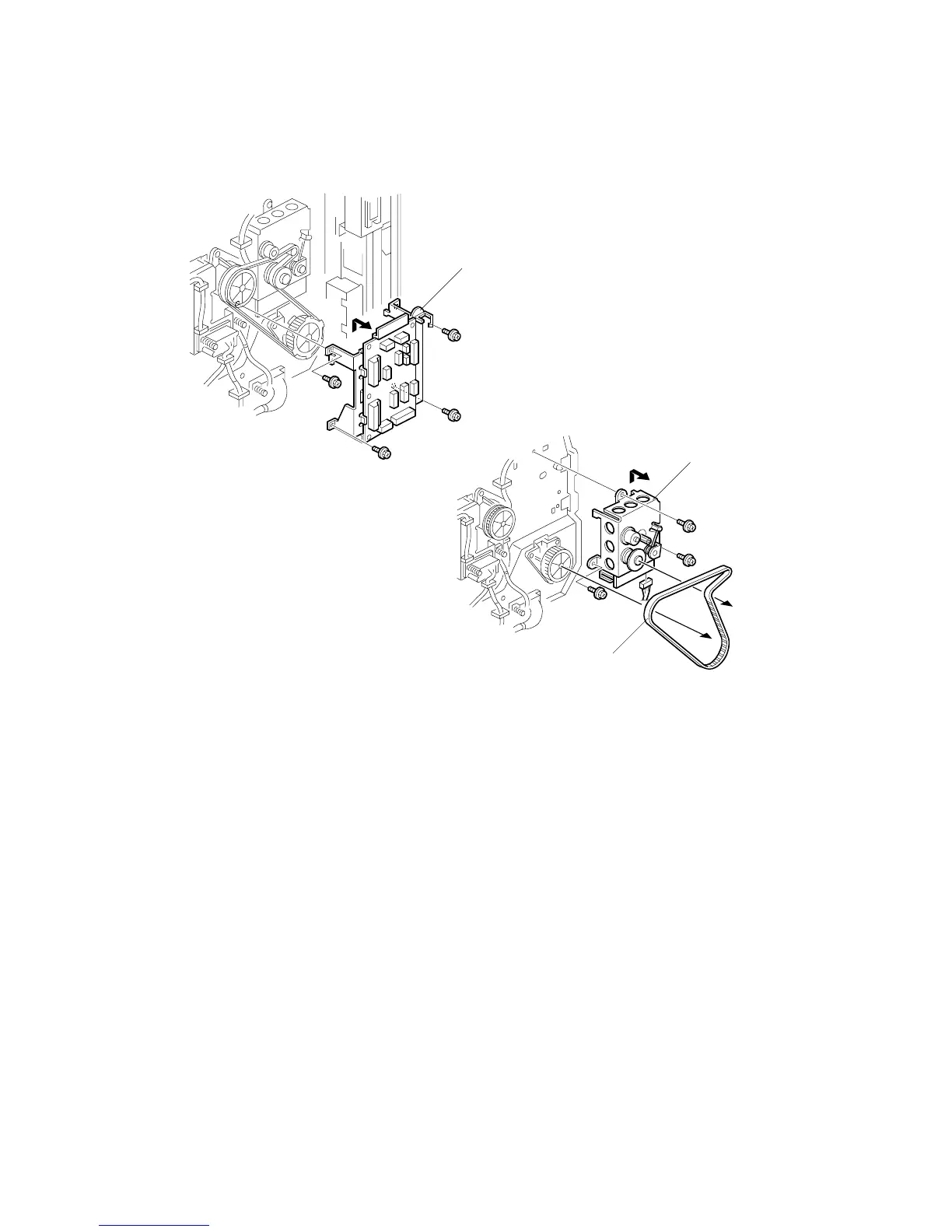

B140R804.WMF
B140R805.WMF
[A]
[C]
[B]
