LCT (B473)
B064 Series/B140 Series/G126 1-24 SM
Preparing the Main Machine
CAUTION
Switch the machine off and unplug the machine before starting the
following procedure.

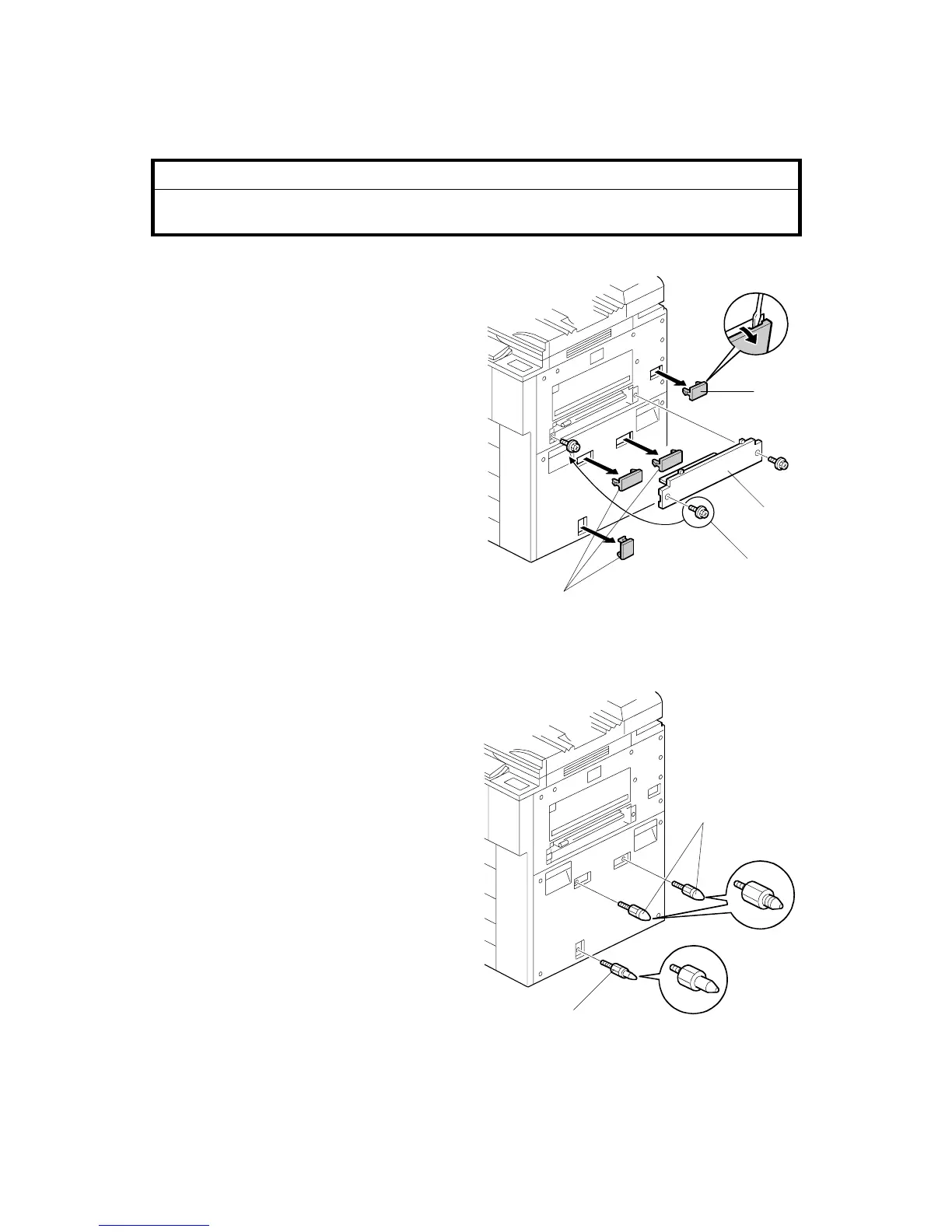

1. Remove the LCT installation cover
[A] from the right side of the
machine. ( x 2).
2. Save the screw on the left [B]. You
will need it to install the LCT.
3. Remove the LCT connector cover
[C] (x 1) and the covers over the
holes for the docking pins [D]. (x 3)
Installing the LCT
1. Insert the two upper docking pins
(grooved) [A] into the upper slots
and the lower docking pin [B] into
the lower slot.
B473I003.WMF
B473I004.WMF
[A]
[C]
[B]
[D]
[B]
[A]
To Next Page
