FUSING UNIT
SM 3-61 B064 Series/B140 Series/G126
Replacement
Adjustment

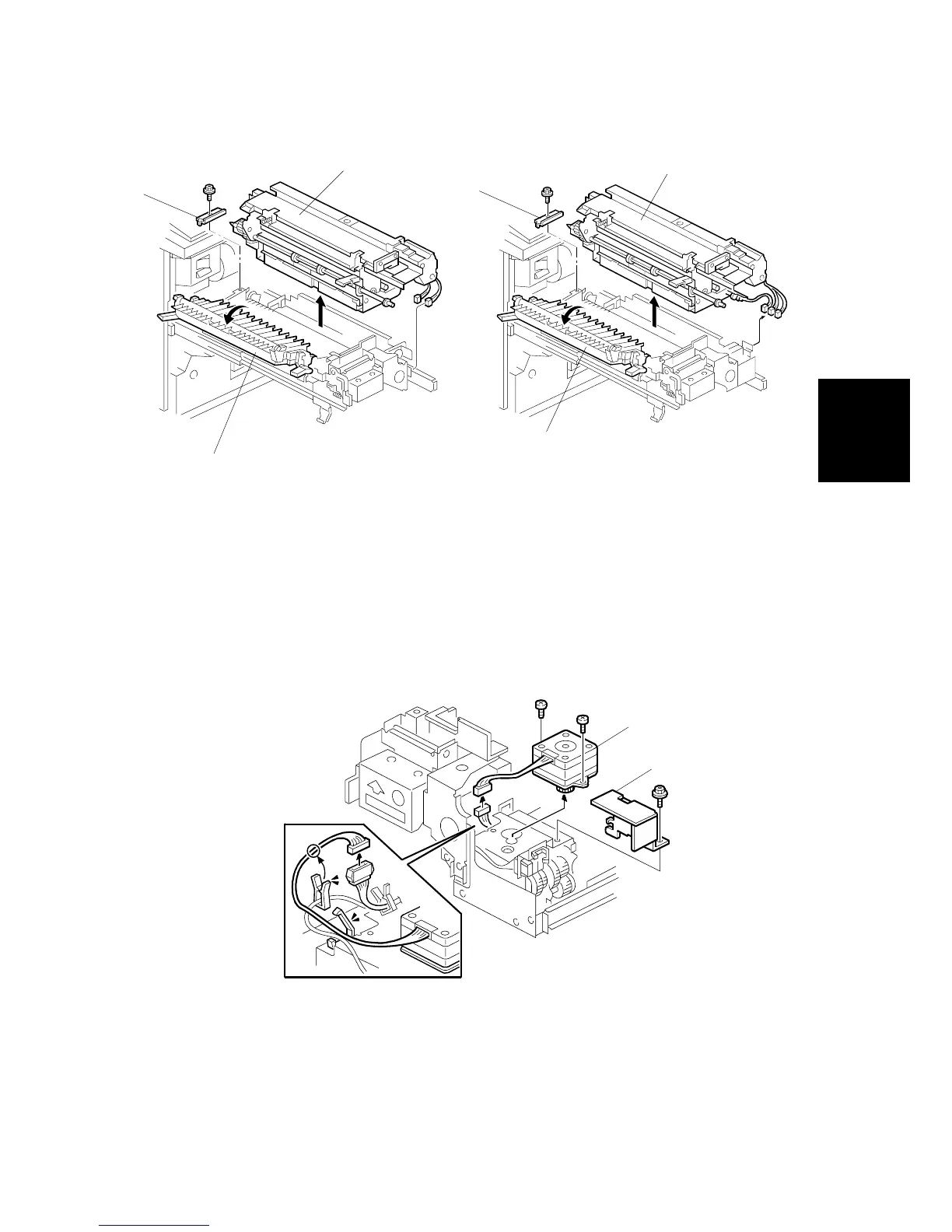

[A]: Open the exit separation pawl assembly.
[B]: Stopper bracket ( x 1)
[C]: Fusing unit (B064 Series:  x 2, B140 Series:  x 2)
Important:
• Give support to the bottom of the fusing unit with your hand when you remove it.
3.9.2 FUSING PRESSURE RELEASE MOTOR (B140 SERIES)
Fusing unit ( 3.9.1)
[A]: Bracket ( x 1)
[B]: Motor ( x 2,  x 1,  x 2)
B140R980.WMF
B140R502.WMF
B140R206.WMF
[A]
[B]
[C]
[A]
[B]
[C]
B064 Series B140 Series
[A]
[B]
