PUNCH POSITION ADJUSTMENT
SM 13 B468/B469/B674
3000-Sheet
Finisher
B468/B469/
B674
1.13 PUNCH POSITION ADJUSTMENT
The positions of punch holes can be adjusted in two directions:
• Vertical positon. To adjust the vertical positions of the punch holes, execute
SP6113 002 (Punch Hole Adjustment – 2 Holes) or 003 (3 Holes) to adjust the
timing of the punch motor.
• Horizontal position. To adjust the horizontal positions of the punch holes, install
or remove the metal spacers. Three spacers are used:
• 1 spacer, 2 mm thick
• 2 spacers, each 1 mm thick.

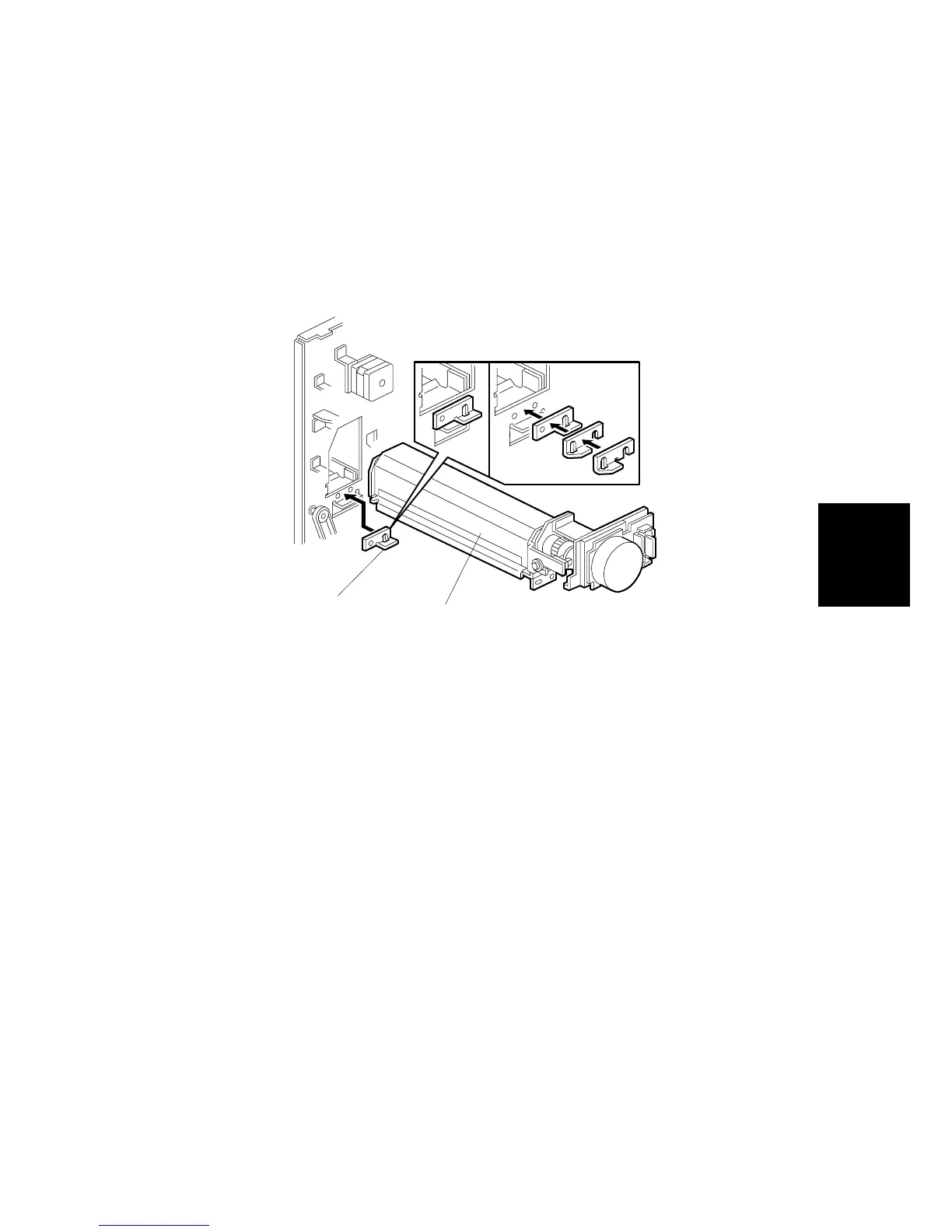

Rear cover ( 1.1)
[A]: Punch unit ( x 2)
[B]: Spacer
• Attach or remove the required number of spacers.
• The 2 mm spacer should be installed to set the default punch hole positions.
Use the 1 mm spacers to adjust.
B468R010.WMF
[A]
[B]
