REPLACEMENT AND ADJUSTMENT
SM 25 B706
3000-Sheet
Finisher
B706

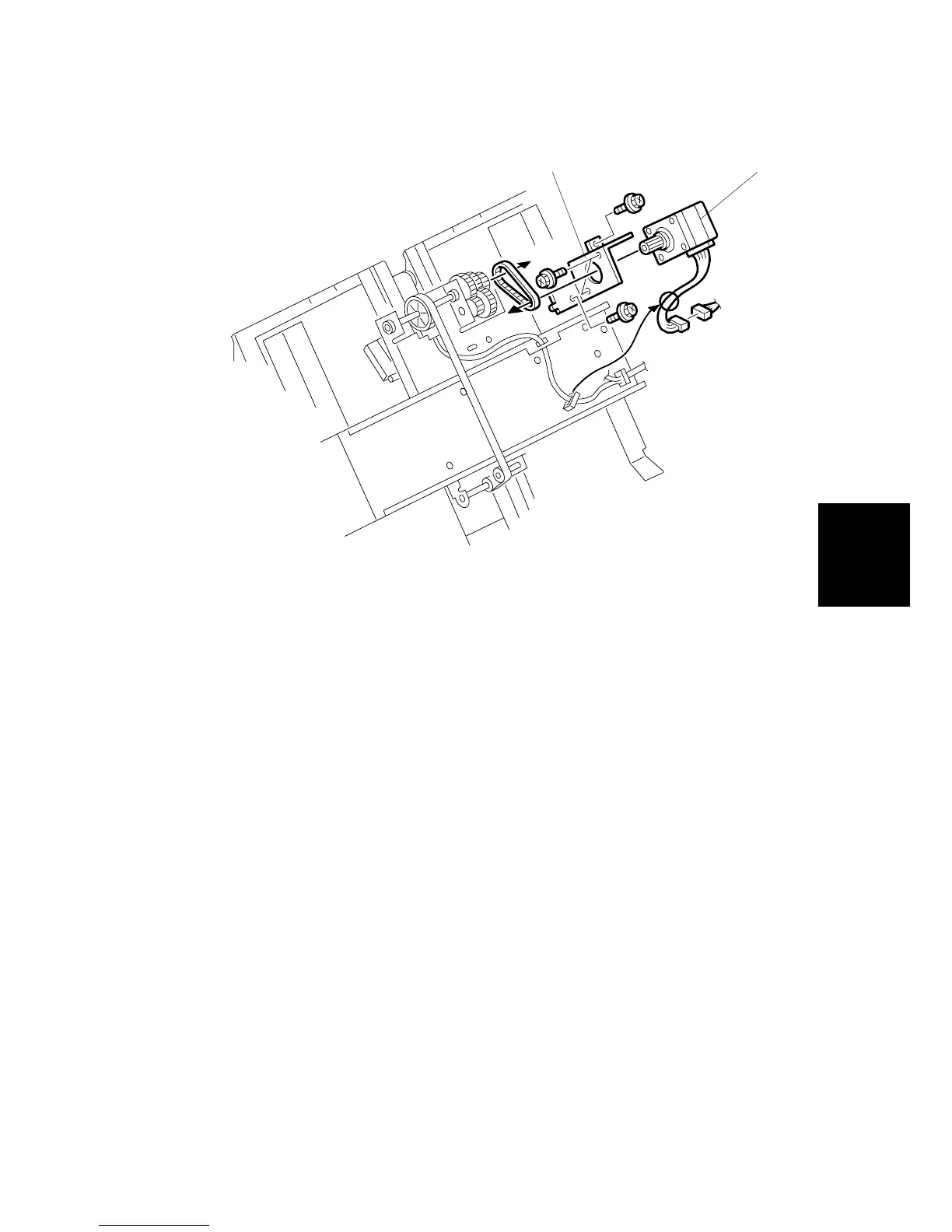

3.8.3 JOGGER TOP FENCE MOTOR
1. Open the front door and pull out the stapler tray unit.
2. Remove the Z-fold jogger unit cover ( x 2).
3. Remove the motor bracket [A] ( x 2, timing belt x 1).
4. Remove the jogger top fence motor [B] ( x 2,  x 1,  x 1).
B706R102.WMF
[A]
[B]
