FUSING UNIT
SM 3-67 B064 Series/B140 Series/G126
Replacement
Adjustment

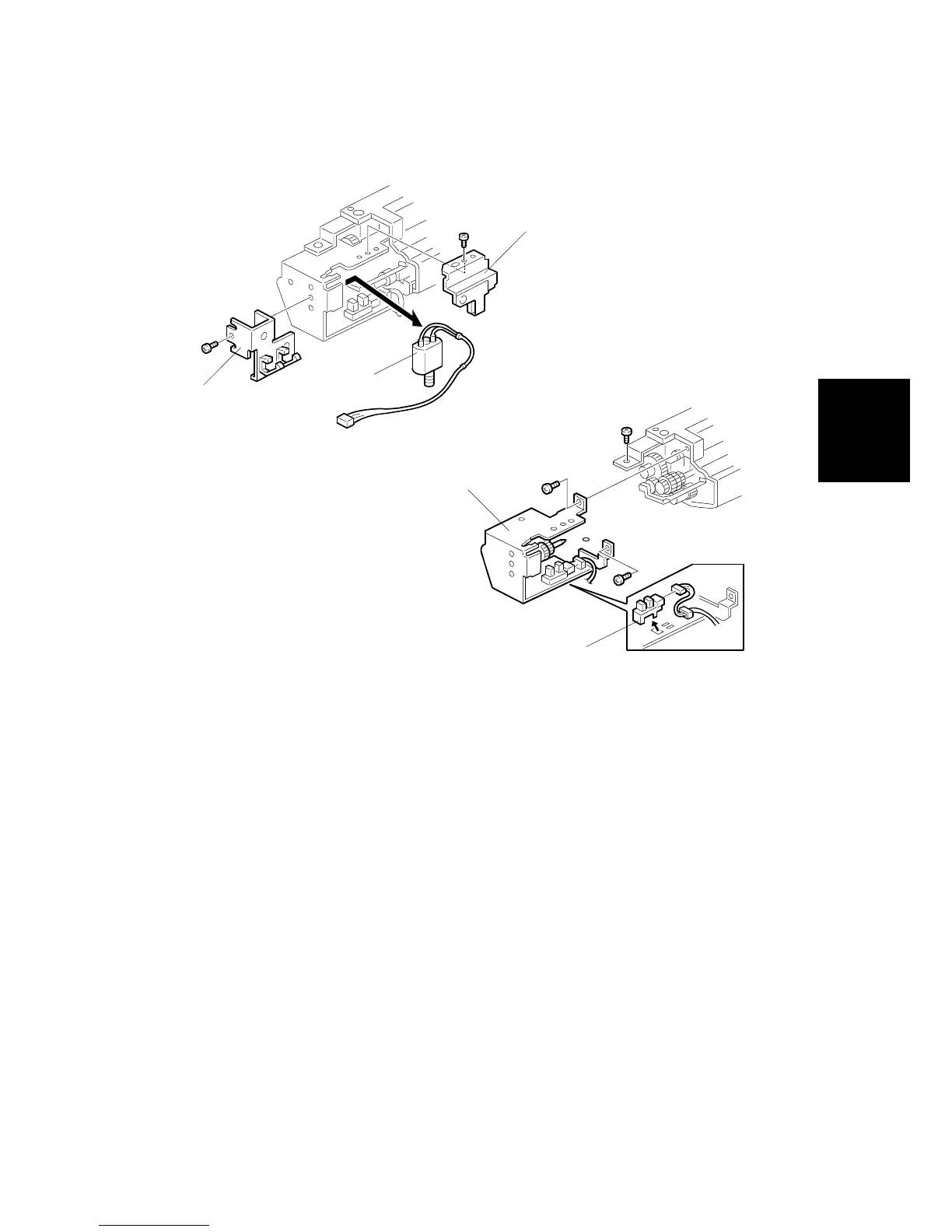

3.9.6 WEB MOTOR AND WEB END SENSOR
Web unit and end cover ( 3.9.5)
[A]: Bracket ( x 1)
[B]: Web motor positioning bracket ( x 1)
[C]: Web motor
[D]: Web motor/sensor mount ( x 3)
[E]: Web end sensor ( x 1, harness x 1)
NOTE: At reassembly, make sure that the harness of the web driver motor is not
pinched by the fusing inner cover
B140R988.WMF
B140R989.WMF
[A]
[B]
[C]
[D]
[E]
