PUNCH UNIT (B377)
B064 Series/B140 Series/G126 1-38 SM

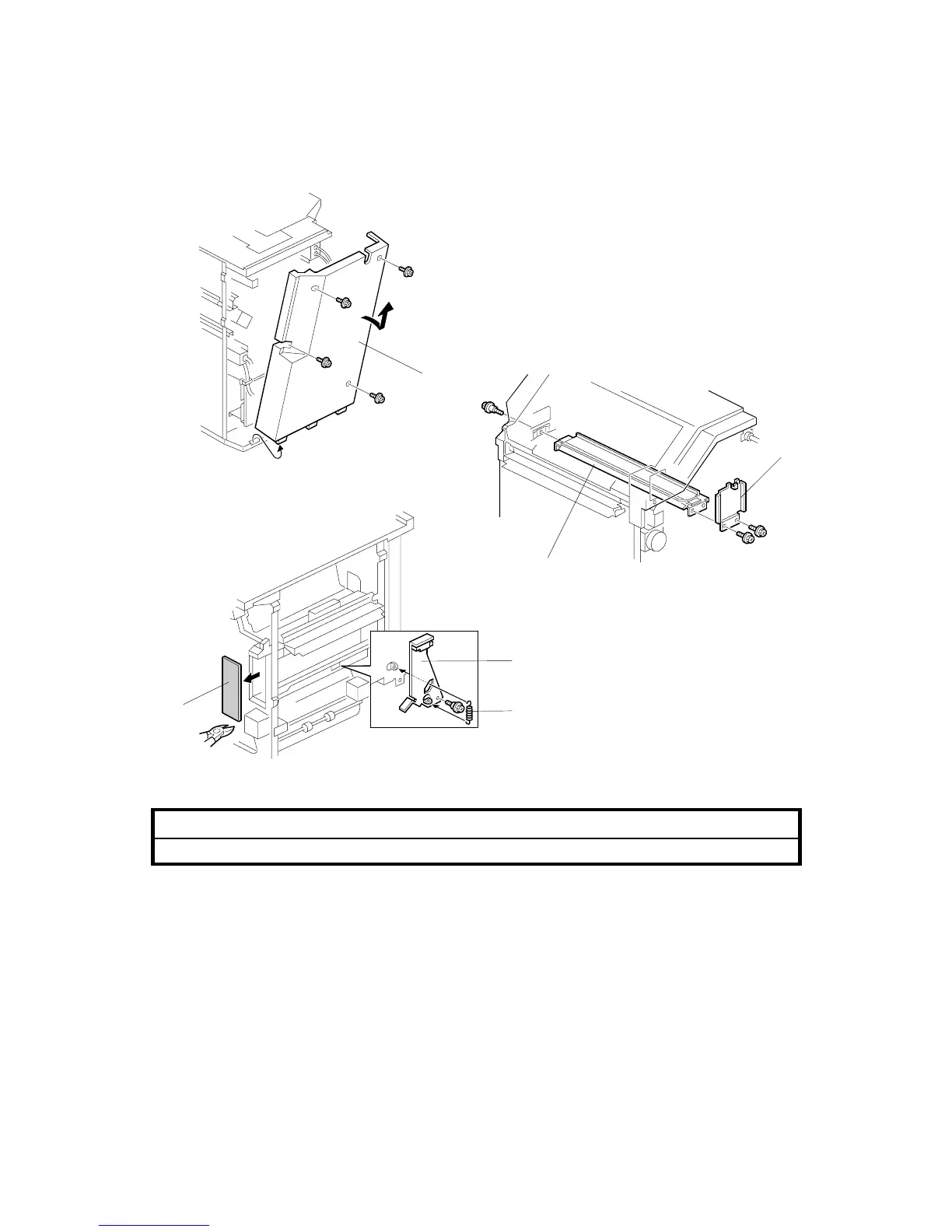

1.7.2 INSTALLATION PROCEDURE
CAUTION
Switch off the main machine and unplug its power cord.
1. If the finisher is connected to the machine, disconnect it.
2. Unpack the punch unit and remove all tapes and shipping retainers.
3. Open the front door and remove the rear cover [A] ( x 4).
4. Remove the bracket [B] ( x 2) and paper guide [C] ( x 1).
5. Remove the plastic knockout [D].
6. Install the sensor arm [E] ( x 1).
7. Install the spring [F].
B377I103.WMF
B377I201.WMF
B377I202.WMF
[B]
[C]
[D]
[E]
[A]
[F]
To Next Page
