JOGGER BOTTOM FENCE MOTOR(B674 ONLY)
B468/B469/B674 12 SM

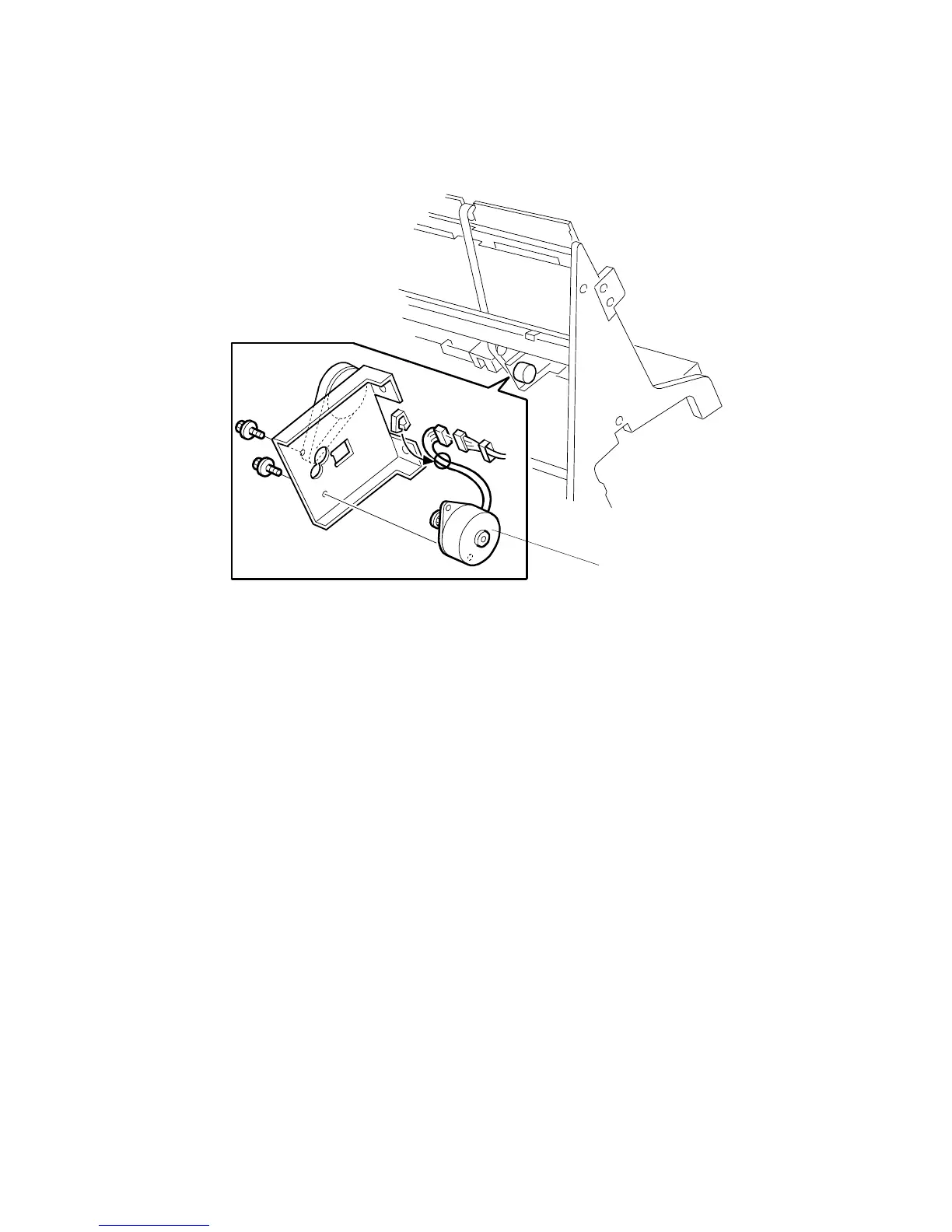

1.12 JOGGER BOTTOM FENCE MOTOR(B674 ONLY)
1. Open the front door and pull out the stapler tray unit.
2. Remove the jogger bottom fence motor [A] ( x 2, timing belt x 1, x 1, x 1).
B468R902.WMF
[A]
