IMAGE TRANSFER AND PAPER SEPARATION
SM 6-85 B064 Series/B140 Series/G126
Detailed
Descriptions
6.10.7 TRANSFER BELT CLEANING
Toner collects on the transfer belt in the following cases. This toner causes
streaking on the reverse sides of copies.
• As a result of a paper jam
• If the by-pass feed tray side fences are set in the wrong position

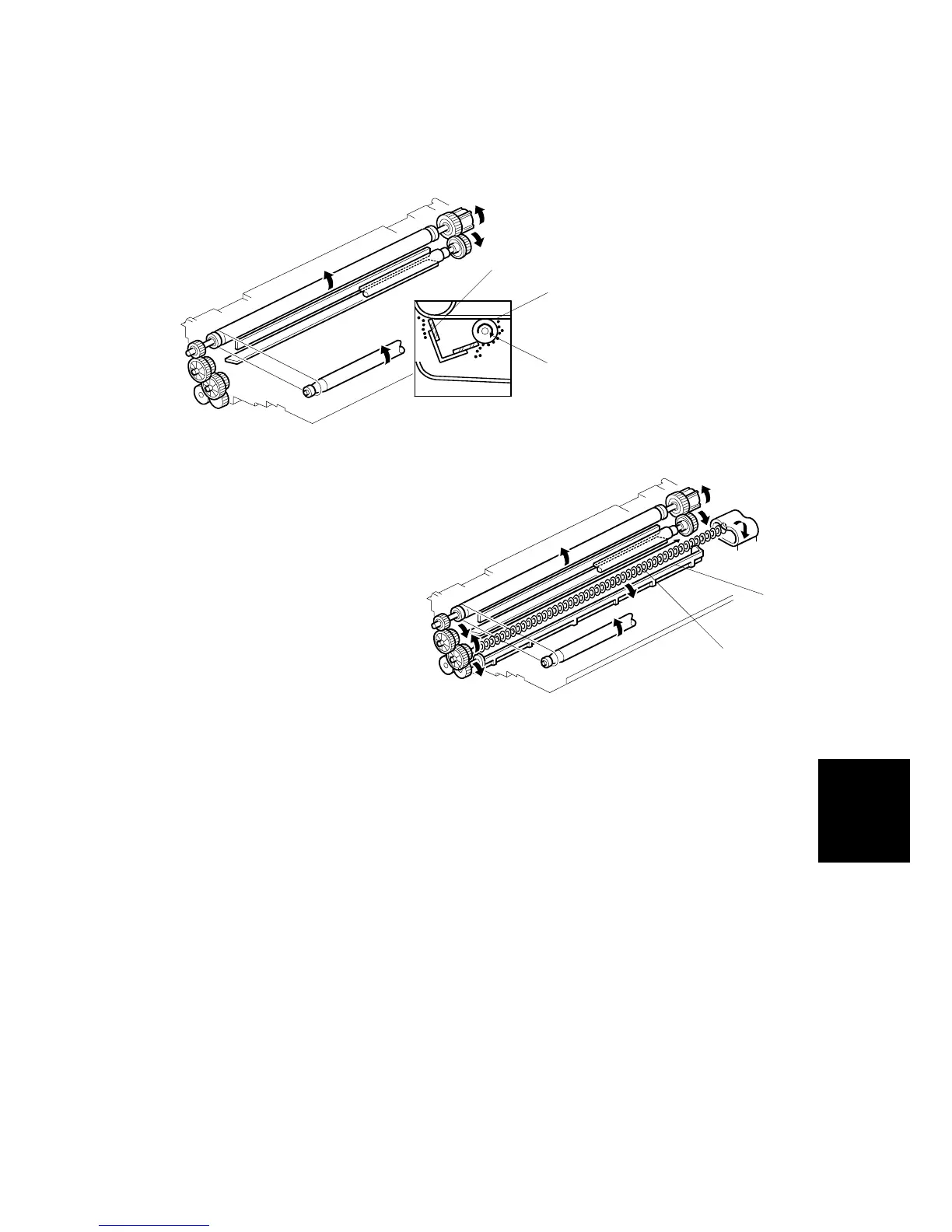

The cleaning roller [A] has a positive charge, so it can collect negatively charged
toner and paper dust from the transfer belt [B]. The cleaning roller always contacts
the transfer belt.
The cleaning blade [C] scrapes toner off the cleaning roller and drops it onto the
agitator plate [D]. The plate [D] moves the toner into the collection coil [E]. The coil
takes the toner to the toner collection bottle.
B140D967.WMF
B140D968.WMF
[E]
[D]
[A]
[B]
[C]
