DRUM UNIT
B064 Series/B140 Series/G126 3-44 SM

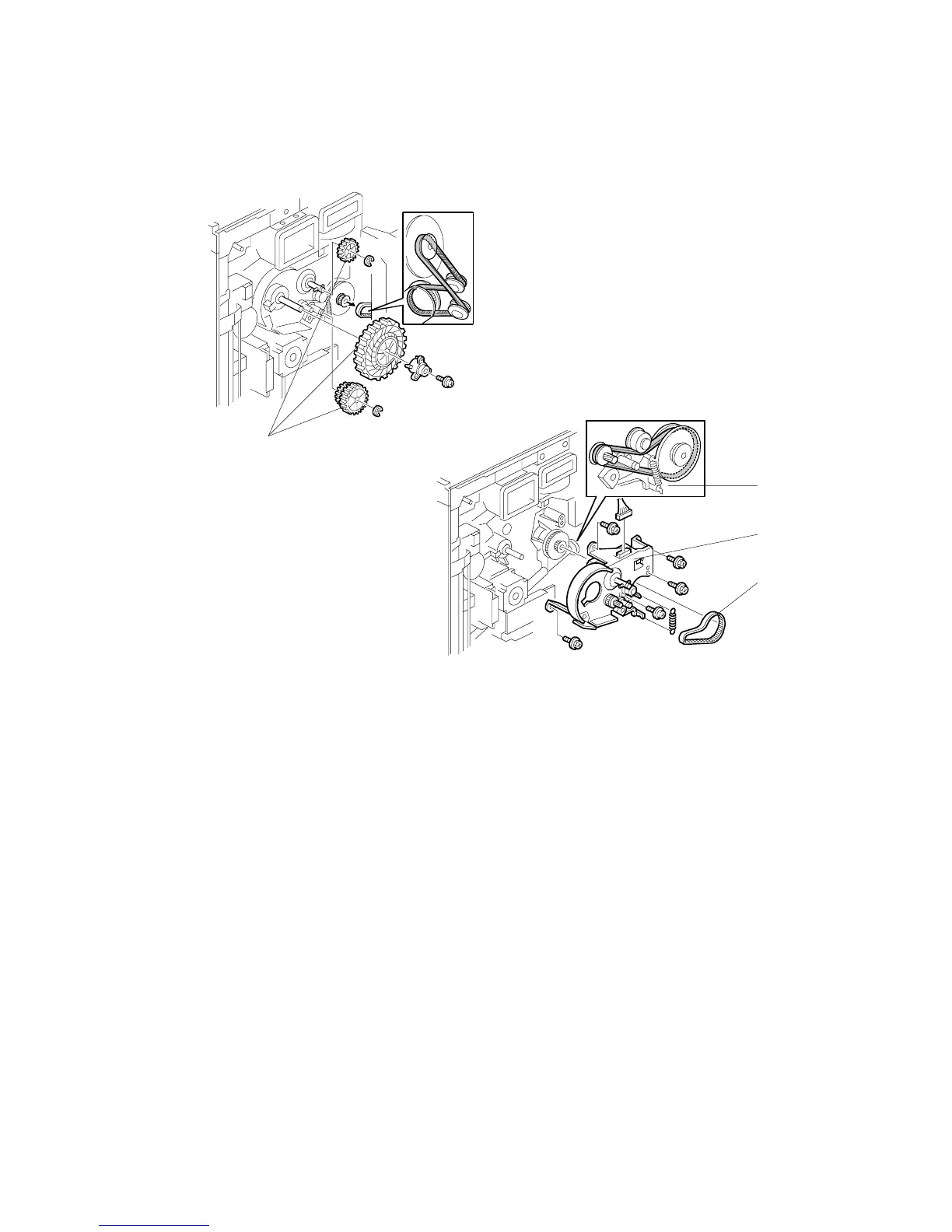

3.6.14 DRUM MOTOR
Rear covers ( 3.3.5)
Controller/IPU panel ( x 2) (not shown)
• The panel swings open like a door. You do not need to remove it.
Flywheel ( x 3) (not shown)
[A]: Three gears ( x 1,  x 2, Timing belt x 1)
[B]: Spring
[C]: Timing belt
[D]: Drum motor ( x 1,  x 5)
B140R952.WMF
B140R953.WMF
[A]
[B]
[C]
[D]
