DRIVE LAYOUT
SM 25 B468/B469/B674
3000-Sheet
Finisher
B468/B469/
B674

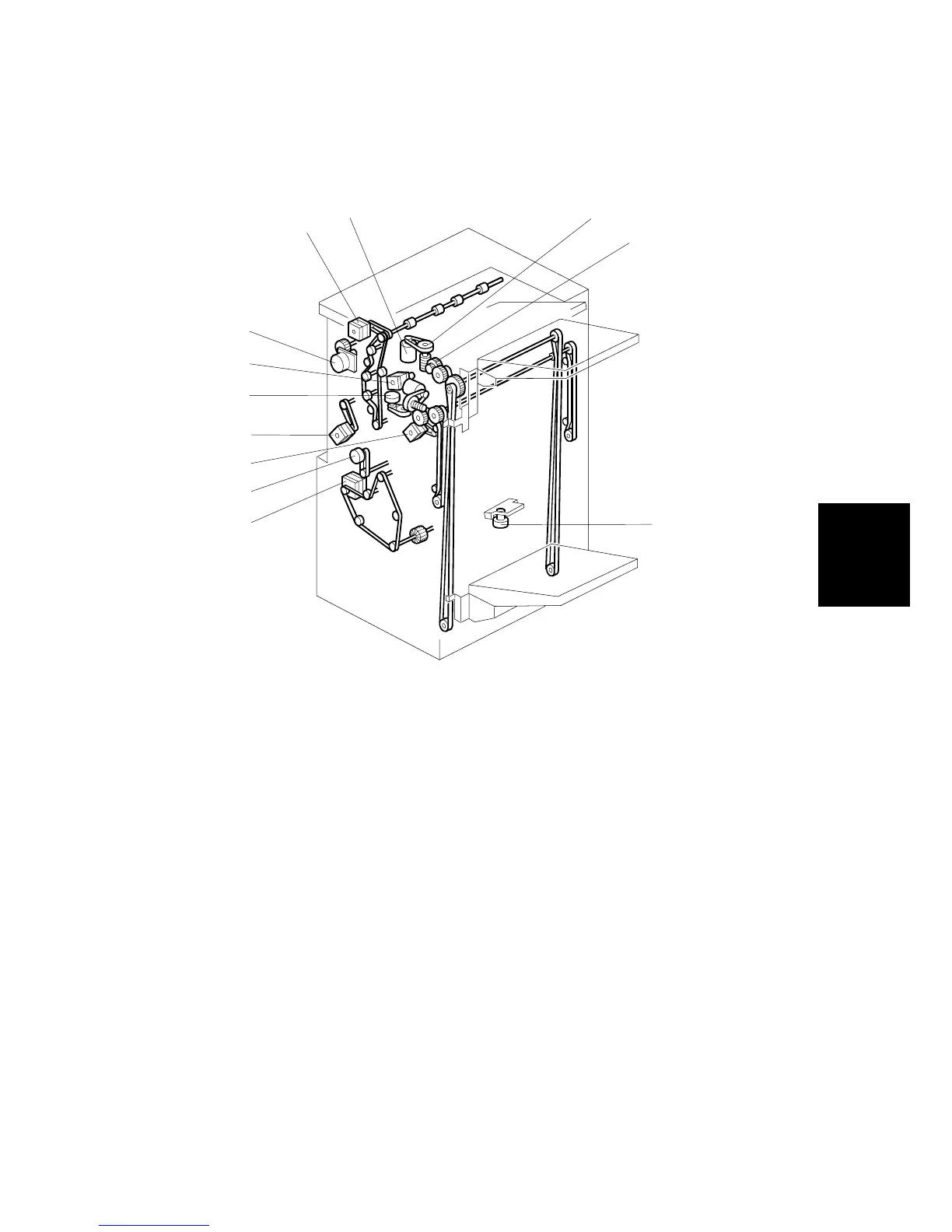

2.2 DRIVE LAYOUT
1. Proof Tray Motor
2. Lower Tray Lift Motor
3. Lower Tray Encoder Disk
4. Upper Tray Lift Motor
5. Pressure Plate Motor
6. Stapler Transport Motor
7. Pre-Stack Motor
8. Exit Motor
9. Entrance Motor
10. Shift Roller Motor
11. Shift Drive Motor
12. Punch Motor
B468D006.WMF
5
10
4
3
2
1
6
7
8
9
11
12
