DETAILS
B478/B513/B531 46 SM

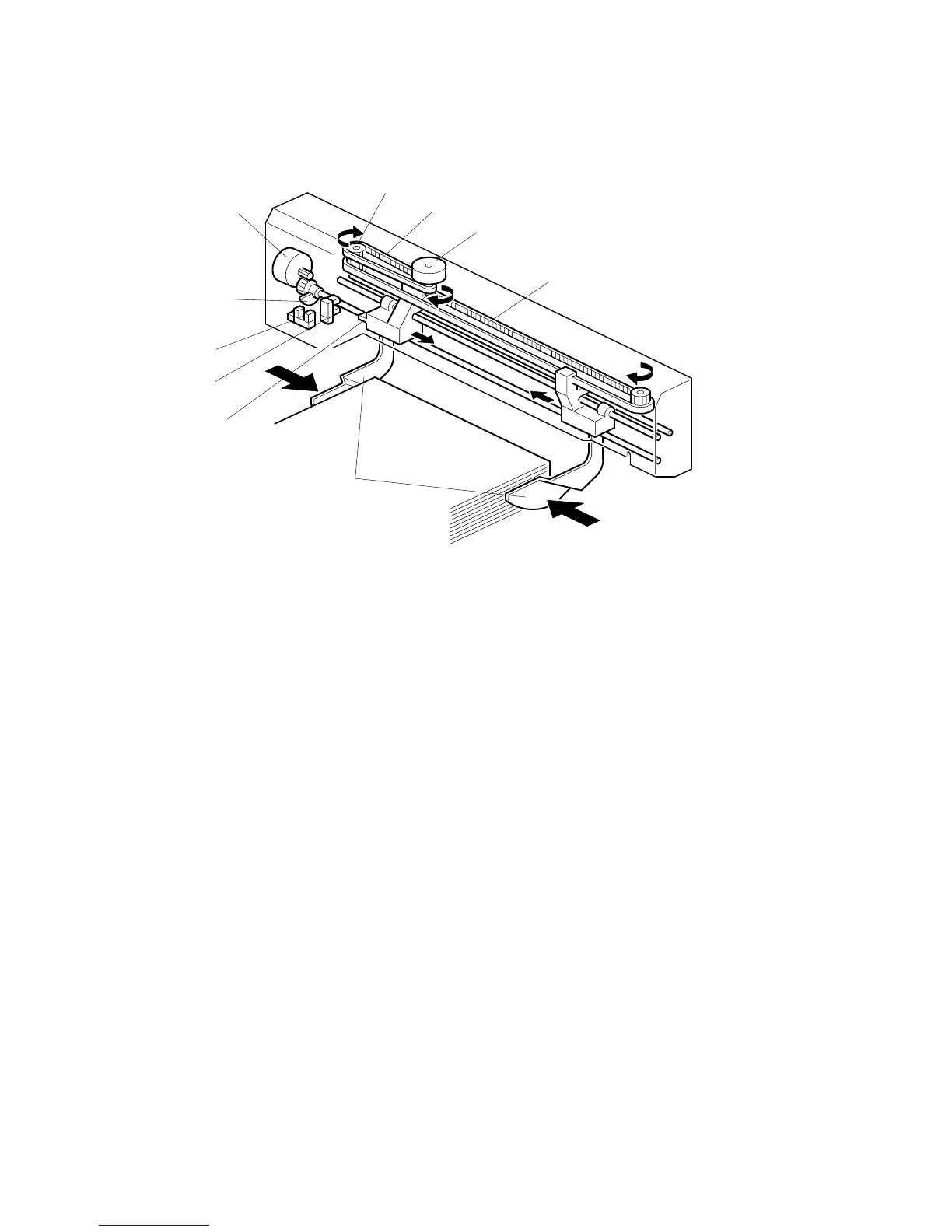

6.12.2 JOGGER UNIT DRIVE
At prescribed intervals, the jogger motor [A] switches on and drives the jogger
timing belt [B], gear [C] and jogger fence timing belt [D] which drives the shift
jogger fences [E] against the sides of the stack to align its edges.
At the end of the job, the jogger fence lift motor [F] switches on and raises the
fences until the actuator [G] leaves the slot of the shift jogger fence lift HP sensor
[H] and shuts off the shift jogger fence lift motor.
At the same time, the jogger motor reverses and drives the fences away from the
sides of the stack until the actuator [I] deactivates the shift jogger fence HP sensor
[J] and switches off the jogger motor.
The jogger fences remain up in the standby position until the next job starts.
B513D002.WMF
[F]
[G]
[H]
[A]
[B]
[C]
[D]
[E]
[I]
[J]
