DEVELOPMENT UNIT
SM 3-53 B064 Series/B140 Series/G126
Replacement
Adjustment

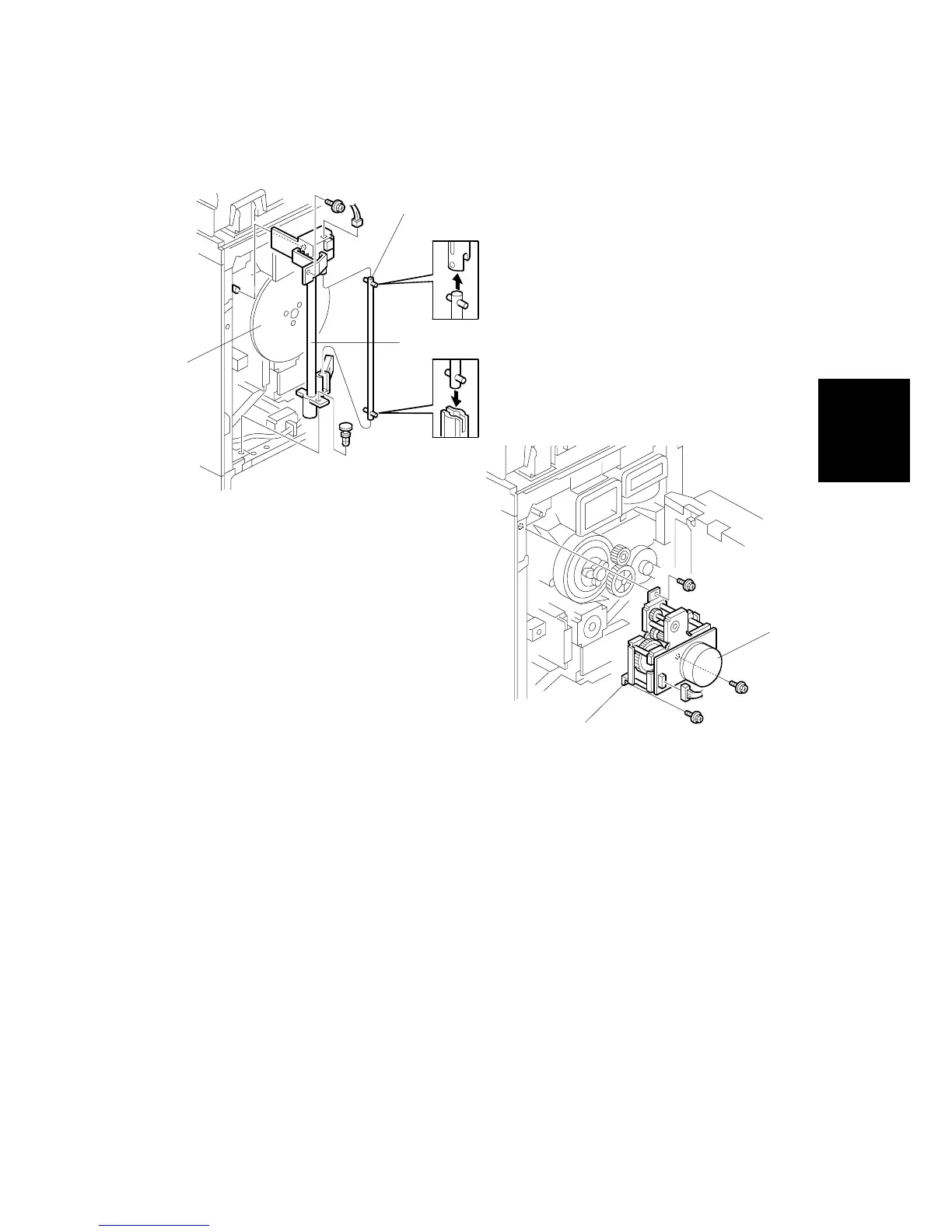

3.7.7 DEVELOPMENT MOTOR
[A]: Flywheel ( x 3)
[B]: Waste toner pump tube ( x 1,  x 1)
[C]: Drive rod
• Lift the toner pump tube to disengage the drive rod, pull out the rod, and
push the rubber tube aside.
[D]: Development motor bracket ( x 3,  x 1)
[E]: Development motor ( x 4)
B140R969.WMF
B140R970.WMF
[D]
[E]
[A]
[B]
[C]
