FEED UNIT AND PICK-UP ROLLER
B470 2 SM

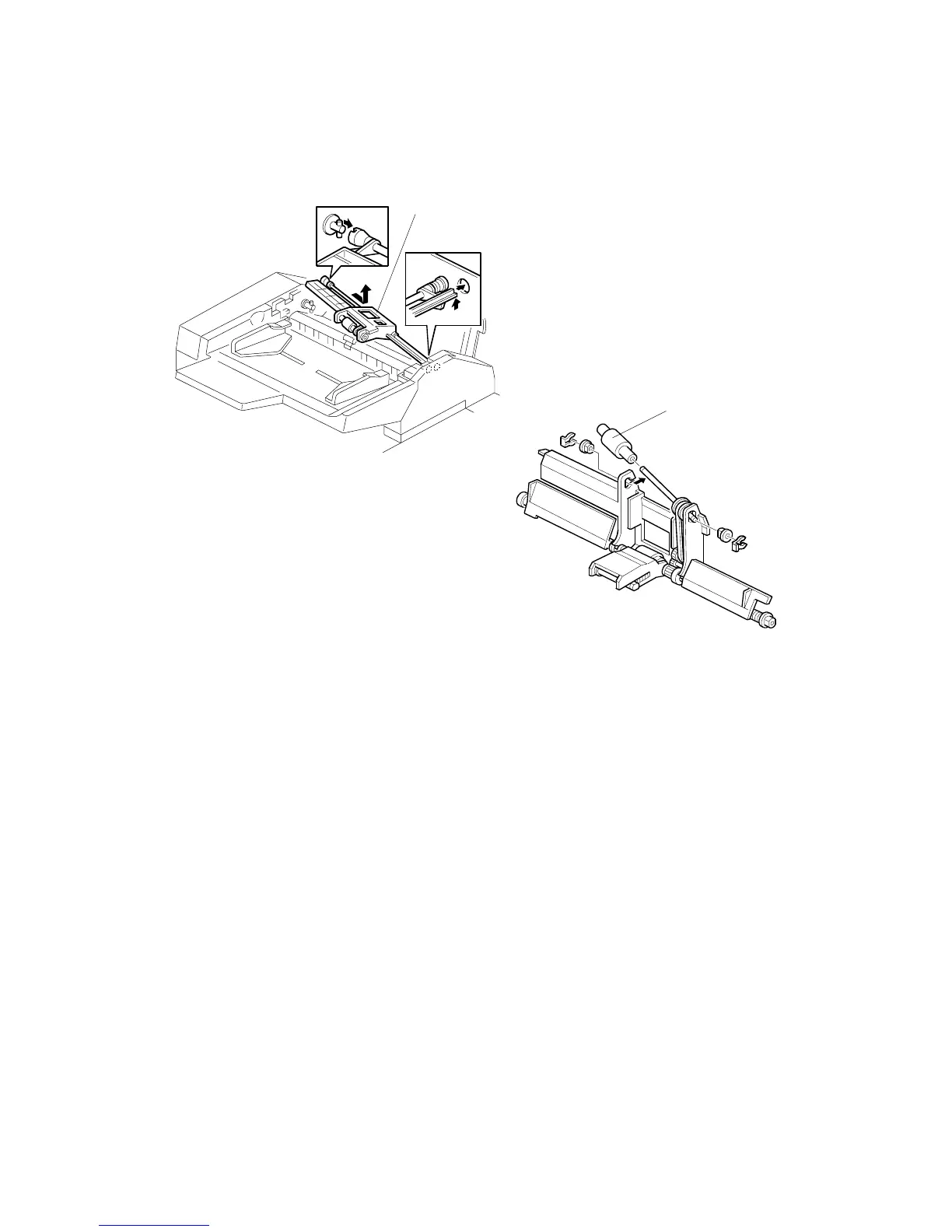

1.2 FEED UNIT AND PICK-UP ROLLER
Open the feed cover.
[A]: Feed unit
• The unit is spring loaded. Push it to the right to release it, then lift it out.
[B]: Pick-up roller ( x 2, bushings x 2)
B470R002.WMF
B470R003.WMF
[A]
[B]
