FUSING UNIT
SM 3-63 B064 Series/B140 Series/G126
Replacement
Adjustment
3.9.4 FUSING UNIT THERMISTORS AND THERMOSTATS

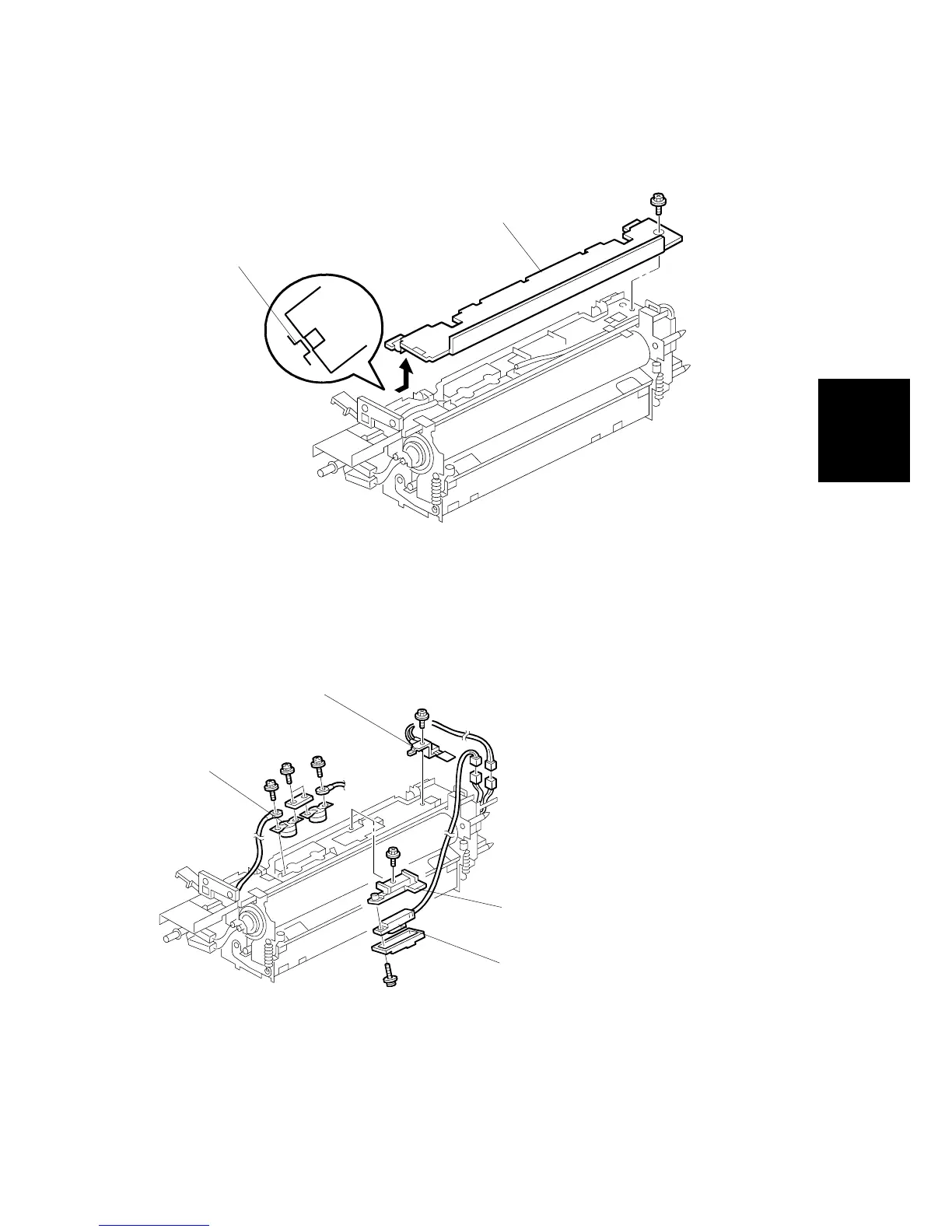

Fusing unit ( 3.9.1)
[A]: Upper cover ( x 1)
[B]: Press in to release the pawls inside, then remove.
Important: Make sure that the pawls [B] engage correctly when you install
the unit again.
B064 Series
[A]: End thermistor ( x 1,  x 1)
[B]: Bracket ( x 2)
[C]: Center thermistor ( x 1)
[D]: Two thermostats ( x 3)
B140R982.WMF
[A]
[B]
[C]
[D]
[A]
[B]
⇒
