OVERVIEW
B471 6 SM

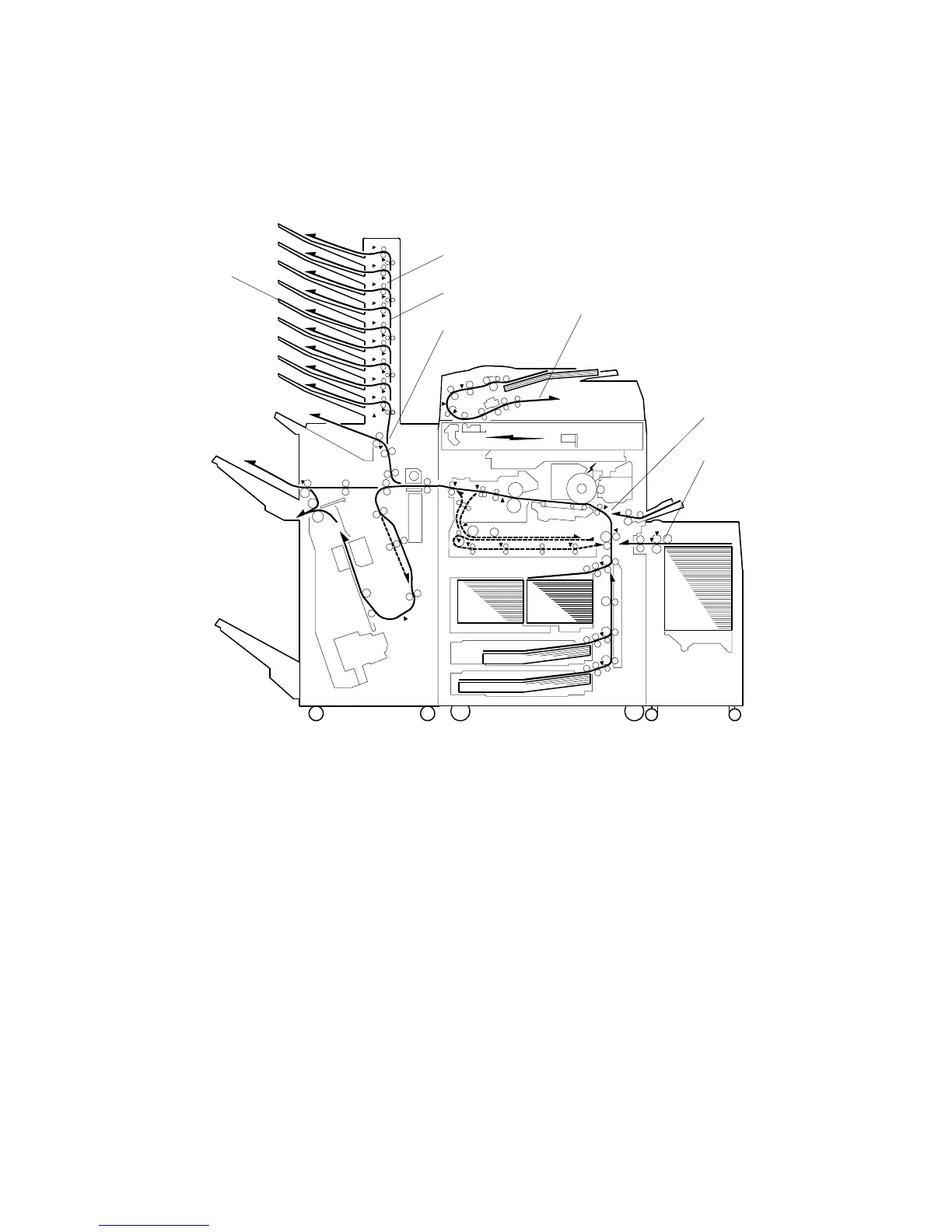

2.1.3 PAPER PATH
1. Original Paper Path
2. Vertical Transport Path
3. LCT Feed
4. Selected Trays
5. Turn Gates
6. Mailbox Paper Path
7. Junction Gate (paper goes either
up to the mailbox or out to the
finisher’s proof tray)
The solenoid for the junction gate (7) is part of the mailbox.
