SCANNER
B064 Series/B140 Series/G126 3-12 SM

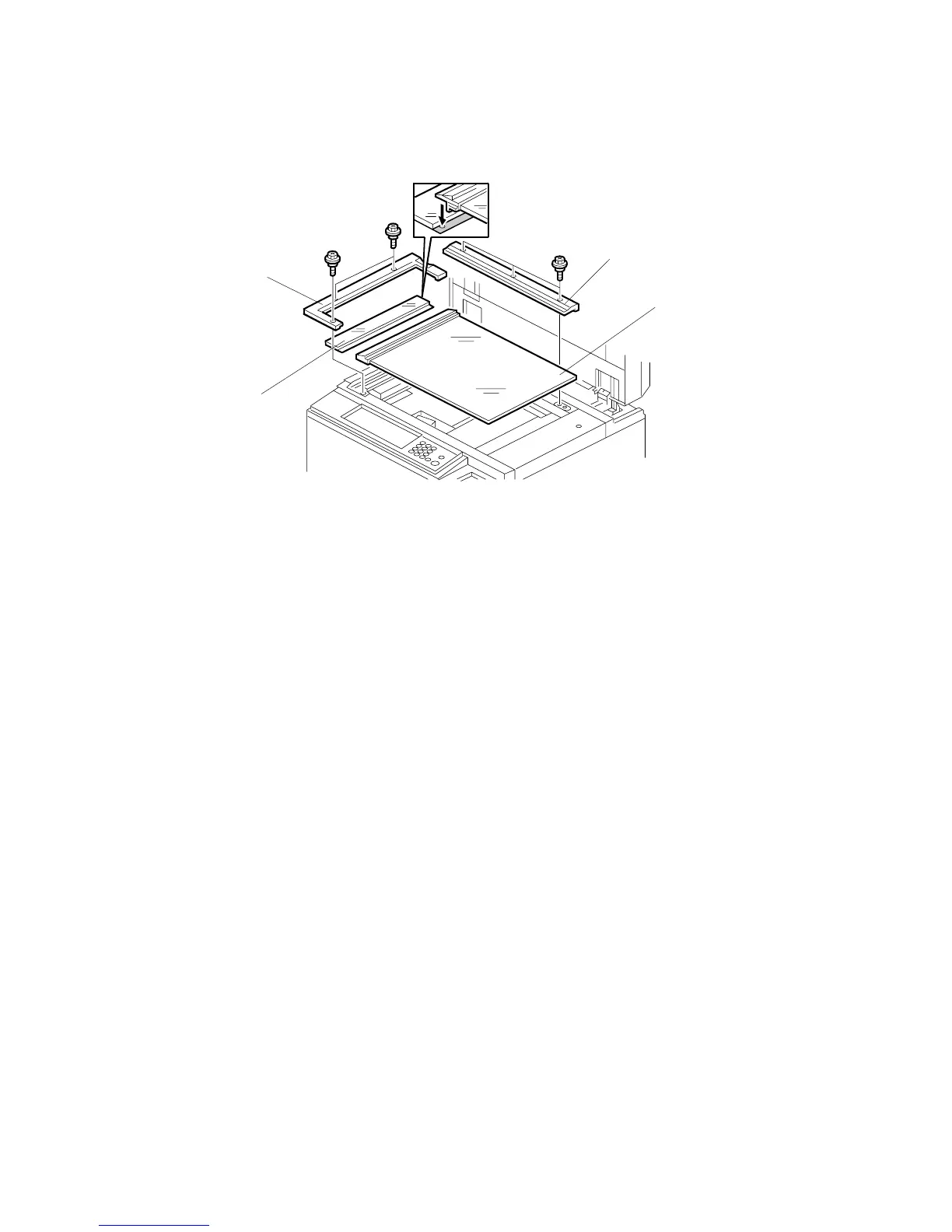

3.4.2 EXPOSURE GLASS
[A]: Rear scale ( x 3)
[B]: Left cover ( x 3)
[C]: ADF exposure glass
[D]: Exposure glass
NOTE: Lift out the exposure glass and left scale together. The left scale is
permanently attached to the exposure glass with double-sided tape. Do not
remove the left scale from the exposure glass.
When re-installing the exposure glass:
• Position the exposure glass first. Make sure that the arrow mark is in the upper
left corner.
• When re-installing the left cover, make sure it is seated correctly.
B140R908.WMF
[A]
[B]
[C]
[D]
To Next Page
