B478/B513/B531 32 SM
6.4 STAPLER UNIT MOVEMENT
Side-to-Side
The stapler motor [A] moves the stapler [B] from side to side. After the start key is
pressed, the stapler moves from its home position to the stapling position.
If two-staple-position mode is selected, for the first stack the stapler moves to the
rear stapling position first, staples, moves to the front position, staples and waits at
the front. For the second stack, the stapler staples the front corner first, then moves
to the rear corner and staples.
NOTE: For continuous stapling jobs, the corners are stapled rear then front for the
odd number stacks and stapled front then rear for even number stacks.
After the job is completed, the stapler returns to its home position. This is detected
by the stapler HP sensor [C].

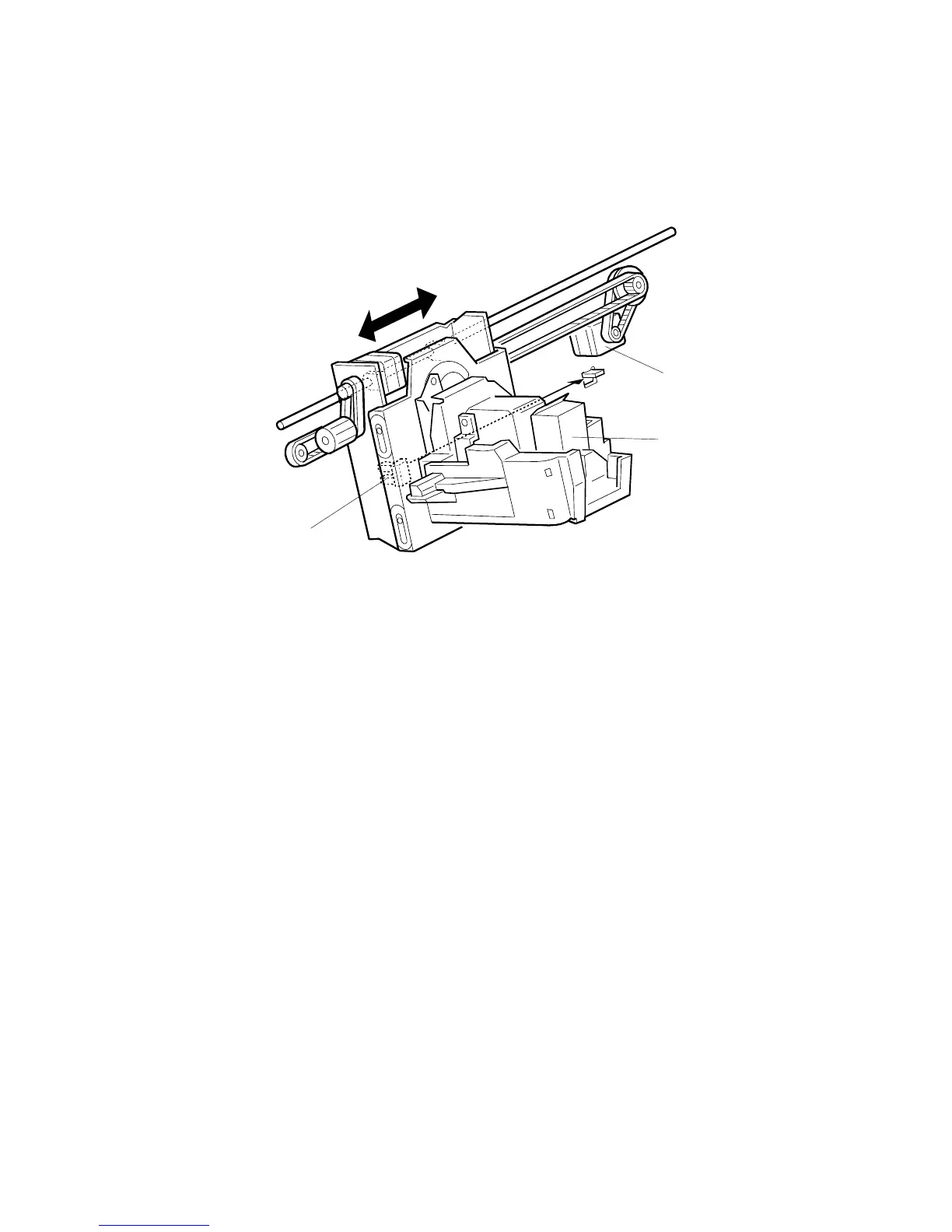

B478D513.WMF
