REPLACEMENT AND ADJUSTMENT
SM 13 B706
3000-Sheet
Finisher
B706
3.5.3 SHIFT TRAY EXIT SENSOR

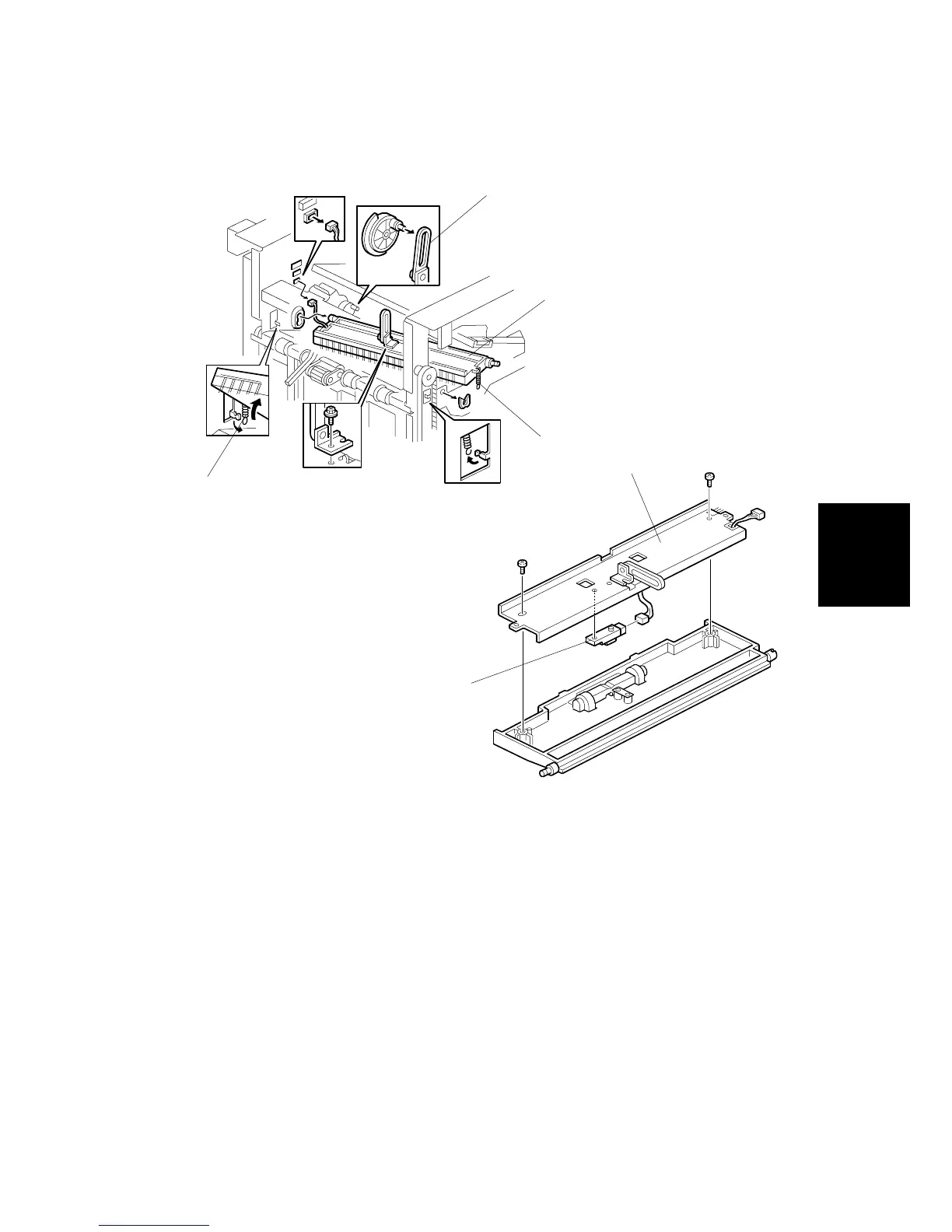

1. Remove the top cover.
2. Open the front door.
3. Remove the inner cover.
4. Release the upper exit guide springs [A] (x 2).
5. Disconnect the link [B] from the cam ( x 1).
6. Remove the upper exit guide [C] ( x 1,  x 1).
7. Remove the guide stay [D] ( x 2).
8. Replace the shift tray exit sensor [E] ( x 1,  x 1).
B706R512.WMF
B706R511.WMF
[D]
[A]
[C]
[A]
[E]
[B]
