ADF (B140 SERIES/B064 SERIES)
B064/B140 Series/G126 3-138 SM

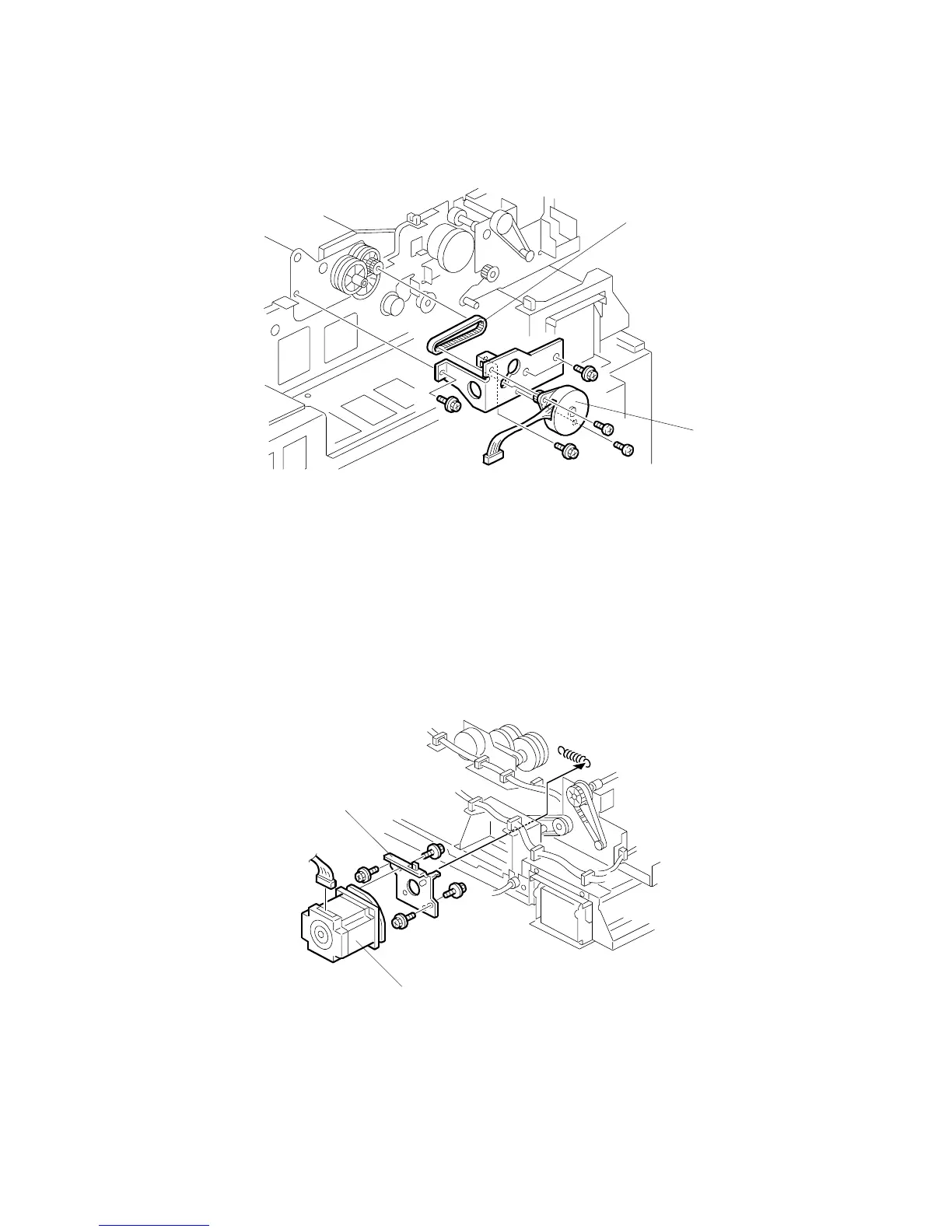

3.13.11 BOTTOM PLATE LIFT MOTOR
Open the feed cover.
ADF Rear cover ( 3.13.1)
[A]: Bottom plate lift motor bracket (harness x 1,  x 1,  x 2, timing belt x 1)
[B]: Bottom plate lift motor ( x 2)
3.13.12 FEED MOTOR
ADF Rear cover ( 3.13.1)
[A]: Feed motor bracket ( x 2,  x 1, spring x 1, belt x 1)
[B]: Feed motor ( x 2)
B140R880.WMF
B140R881.WMF
[A]
[B]
[A]
[B]
