ADF (B140 SERIES/B064 SERIES)
SM 3-137 B064 Series/B140 Series/G126
Replacement
Adjustment
3.13.10 OTHER ADF SENSORS

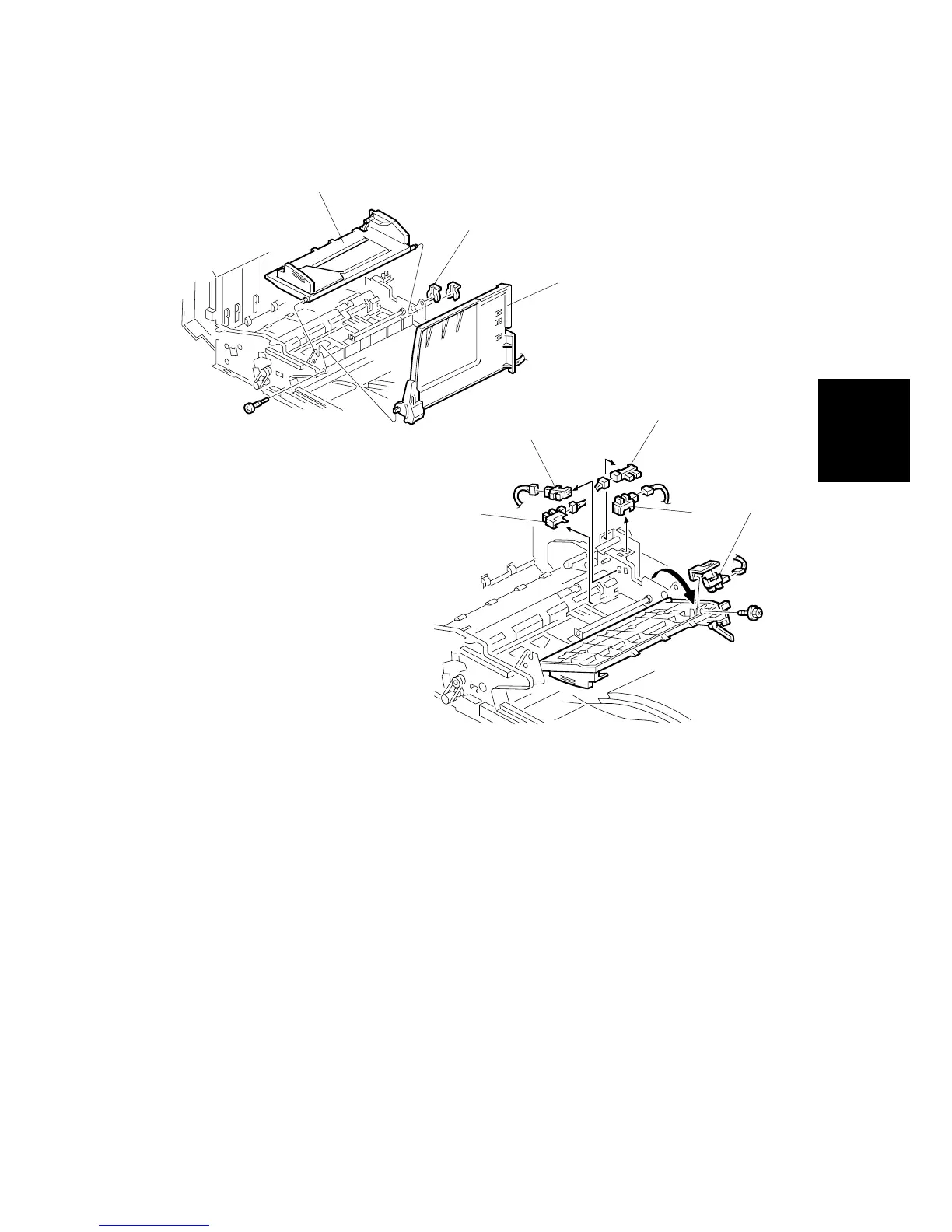

Open the feed cover.
ADF Front/rear covers ( x 4) ( 3.13.1)
[A]: C-Clamps ( x 2)
[B]: Original tray ( x 1)
[C]: Bottom plate ( x 1)
[D]: Original set sensor ( x 1)
[E]: Feed cover sensor ( x 1)
[F]: Bottom plate HP sensor ( x 1)
[G]: Pick-up roller HP sensor ( ( x 1)
[H]: Bottom plate position sensor ( x 1)
B140R878.WMF
B140R879.WMF
[A]
[C]
[B]
[D]
[E]
[F]
[G]
[H]
