TRAY/STAPLER JUNCTION GATES
B468/B469/B674 28 SM

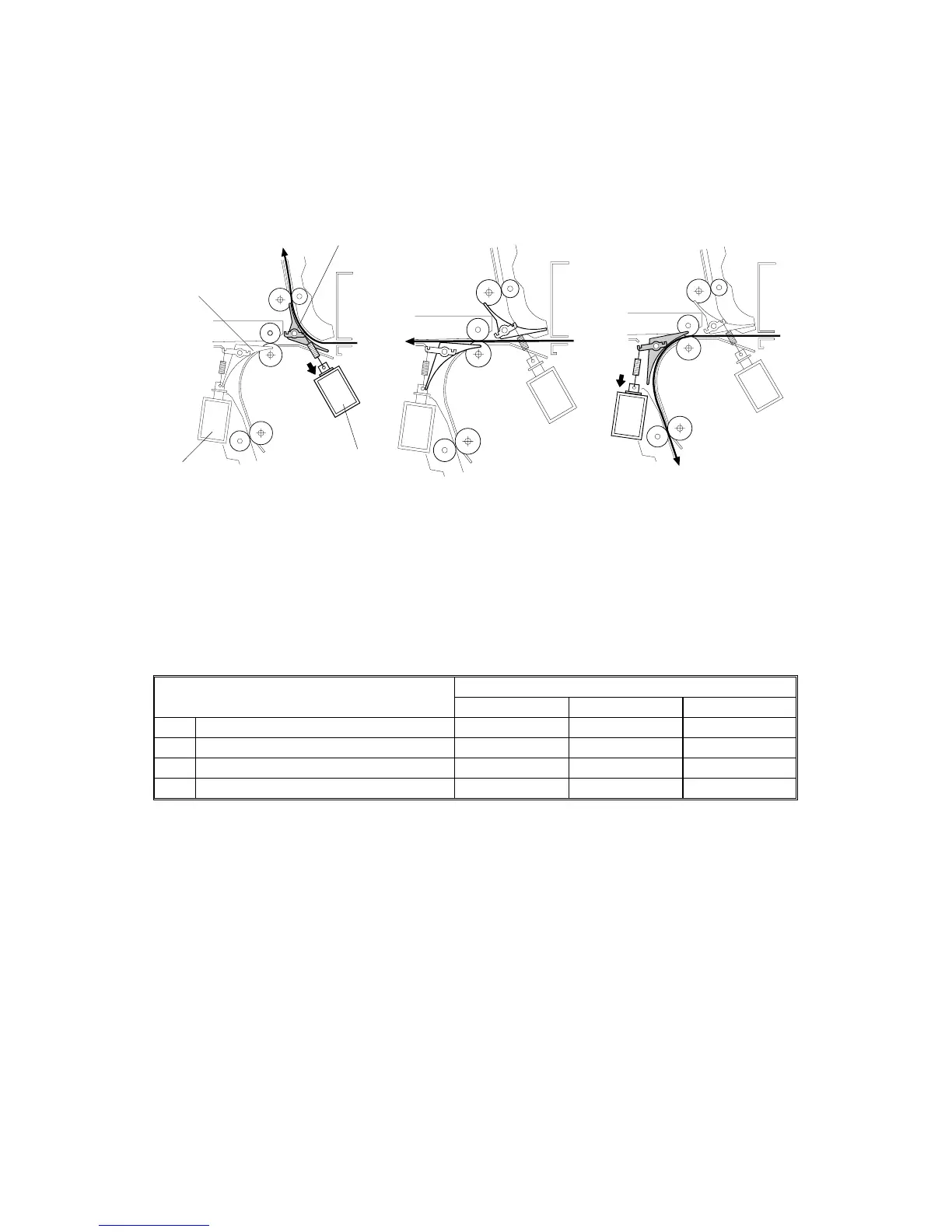

2.3 TRAY/STAPLER JUNCTION GATES
The finishing mode selected for the job determines the direction of the paper in the
finisher.
• Proof Tray (Top of the unit). Paper is sent to the top tray.
• Shift. Paper is sent straight to the upper or lower tray.
• Staple. Paper is sent down to the stapler unit
Selected Operation Mode
Solenoid/Gate
Proof Sort/Stack Staple
[A] Stapler junction gate solenoid OFF OFF ON
[B] Stapler junction gate Closed Closed Open
[C] Proof tray junction gate solenoid ON OFF OFF
[D] Proof tray junction gate Open Closed Closed
B468D009.WMF
B468D008.WMF
B468D010.WMF
[A]
[B]
[D]
[C]
Proof (Upper Tray)
Sort/Stack
Staple
