MFP OPTIONS: B140 SERIES
SM 1-109 B064 Series/B140 Series/G126
Installation
1.17.5 IEEE 1394 INTERFACE BOARD (B581-01)
ACCESSORY CHECK
Check the accessories and their quantities against this list:
Description Q’ty
1. IEEE 1394 Interface Board .................................................... 1
2. 4-Pin Cable............................................................................ 1
3. 6-Pin Cable............................................................................ 1
Installation
You can only install one of these cards, because only one PCI slot (B1) is available
for these options:
• USB 2.0
• IEEE 802.11b (Wireless LAN)
• IEEE 1394 (FireWire)
• Bluetooth Interface Unit G377
If a different card is installed in B1, you must remove it before you install IEEE
1394 Interface Board.
1. Turn the machine off.
2. Remove the cover of Slot B1 ( x 2)

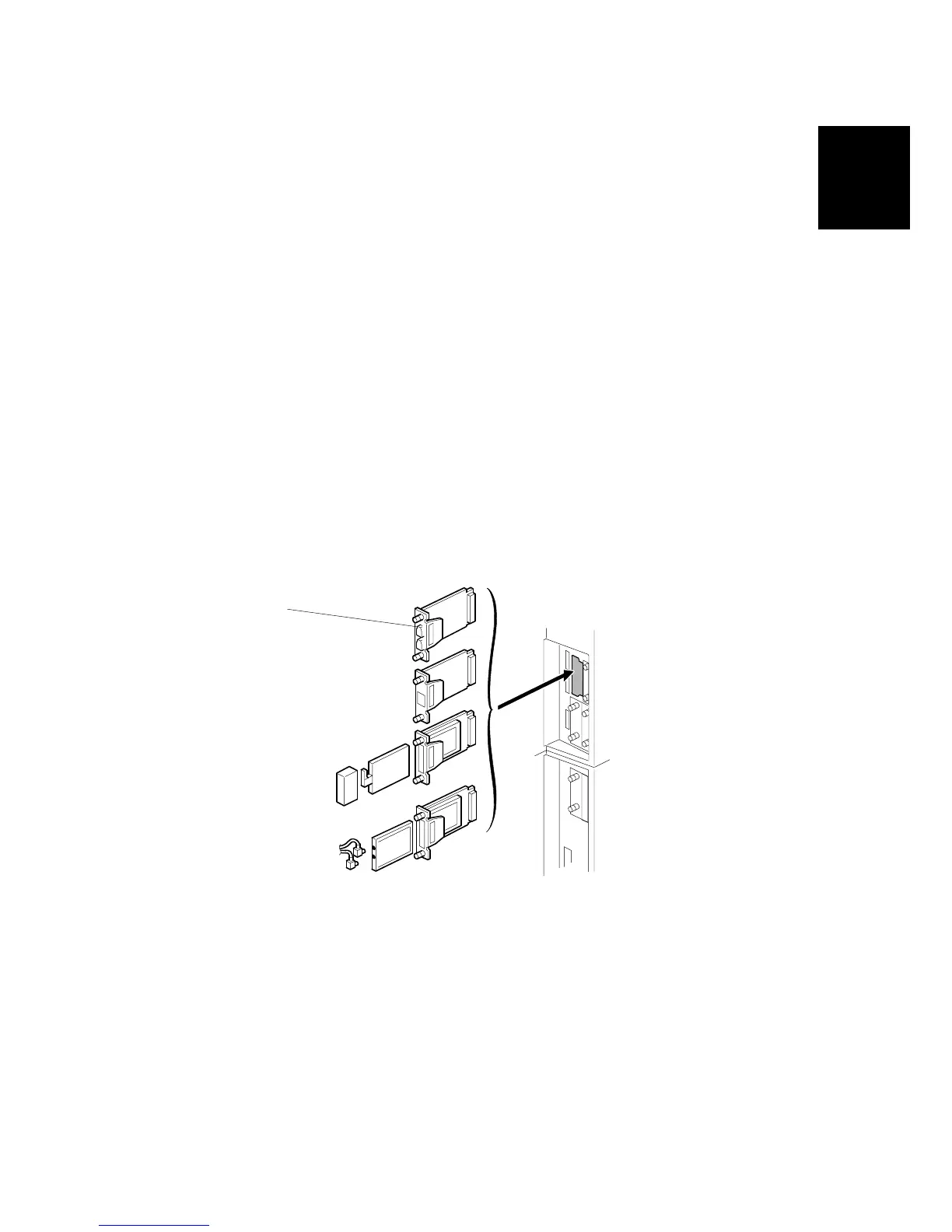

3. Install the IEEE 1394 board [A] in Slot B1 and attach it with the screws.
4. Turn the machine on and print a configuration page to make sure that the
machine can see the IEEE 1394 (FireWire) board:
User Tools> Printer Features> List Test Print> Configuration Page
B659I108.WMF
[A]
