BOTTOM PLATE LIFT WIRE REPLACEMENT
SM 1 B475
A3/DLT Tray
Kit
B475
1. REPLACEMENT AND ADJUSTMENT
1.1 BOTTOM PLATE LIFT WIRE REPLACEMENT

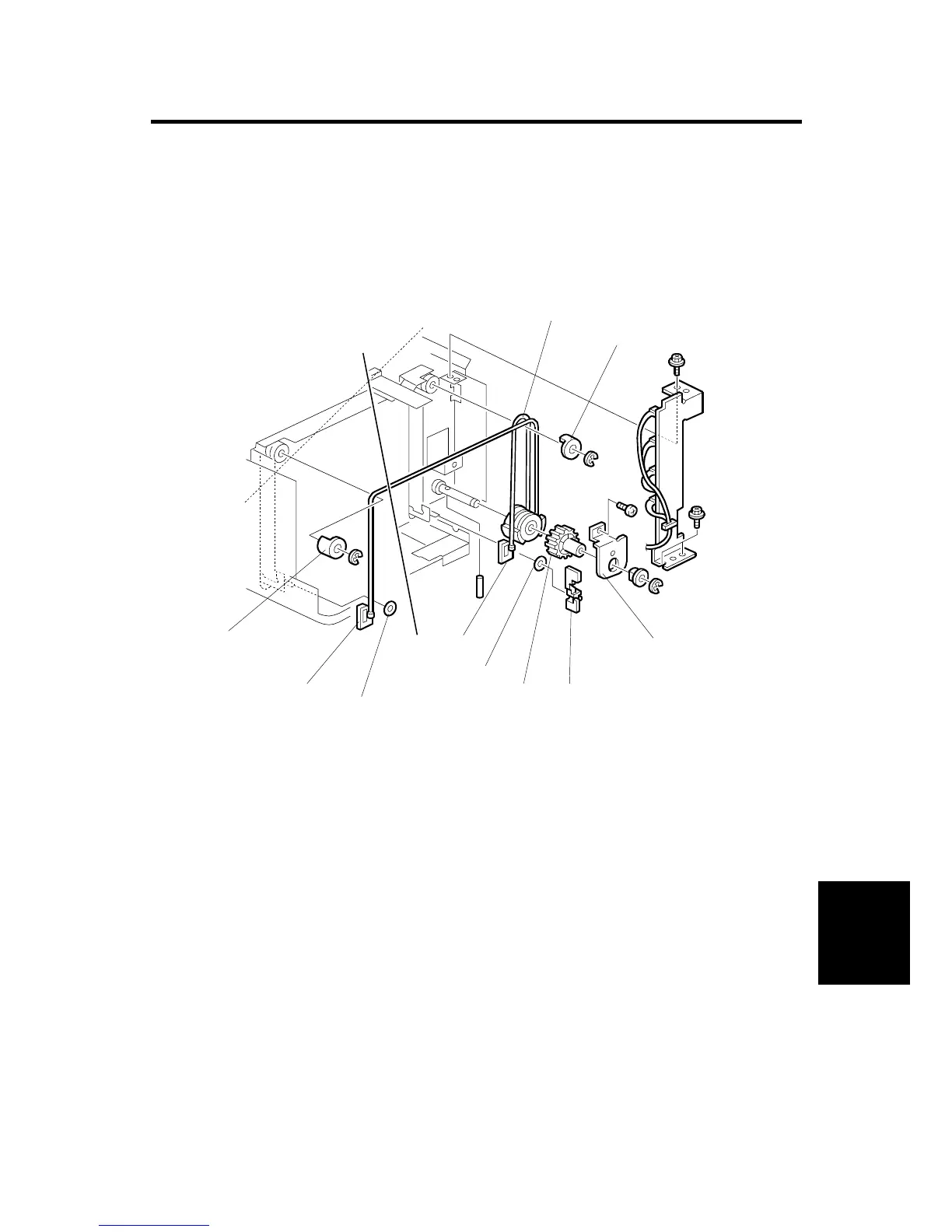

1.1.1 REMOVING THE LIFT WIRE
NOTE: The procedures for front and rear wire removal are the same.
Remove the A3/DLT tray from the machine.
Inner cover ( x 2)
[A]: Sensor bracket ( x 1)
[B]: Wire stoppers
[C]: Wire stopper rings
[D]: Wire covers x 2 ( x 1 each)
[E]: Bracket ( x 1,  x 1, Bushing x 1)
[F]: Gear
[G]: Bottom plate lift wire
B475R101.WMF
[D]
[D]
[B]
[C]
[F]
[G]
[A]
[C]
[E]
Front
[B]
