REPLACEMENT AND ADJUSTMENT
SM 9 B478/B513/B531
Finisher/
Jogger Unit/
Punch Unit
B478/B513/
B531

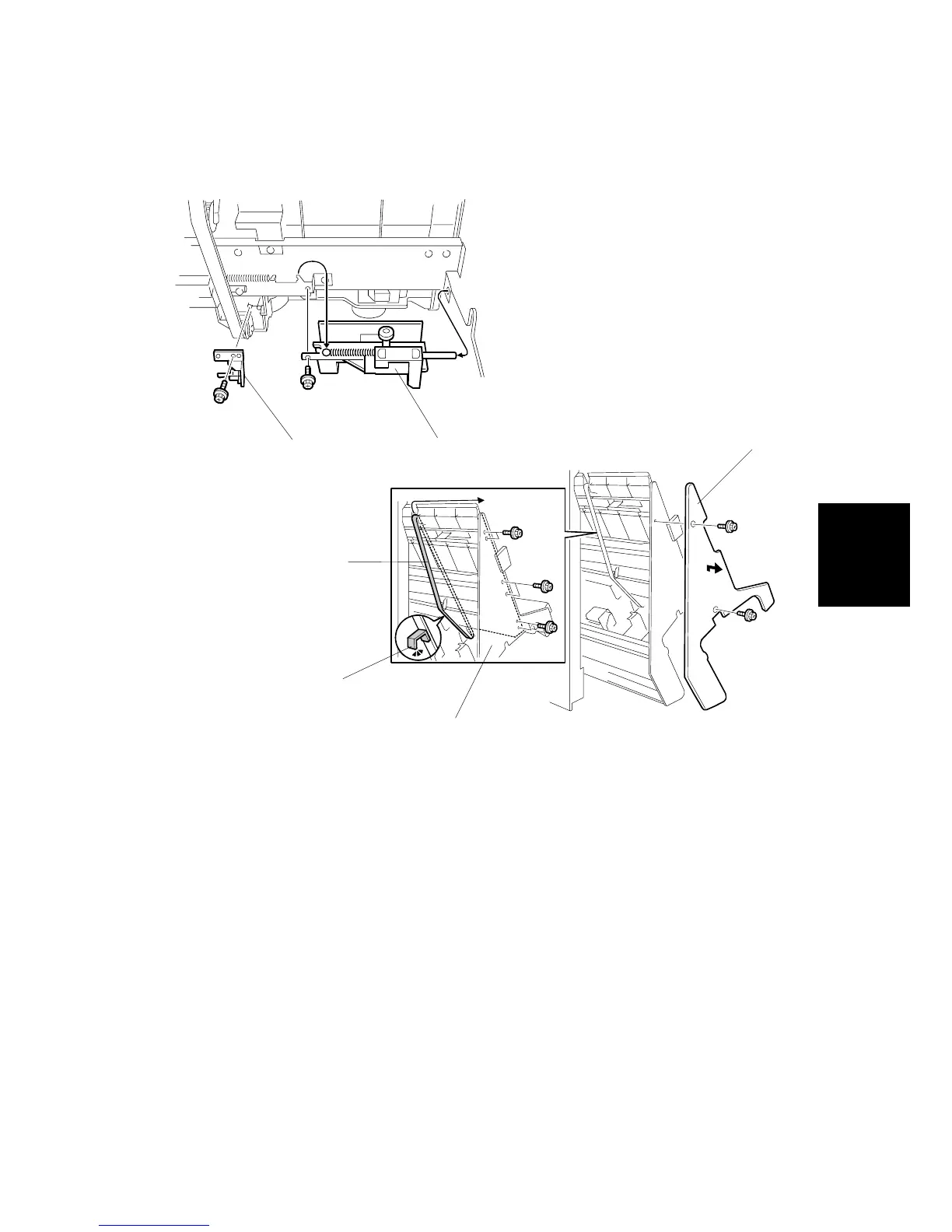

3.3 STACK FEED-OUT BELT
1. Open the front door.
2. Pull out the jogger and stapler unit.
3. Remove the inner cover [A] ( x 2).
4. Remove the sensor bracket [B] ( x 1, x 1, clamp x 1).
5. Remove the front guide [C] ( x 1, spring x 1).
NOTE: When re-installing, make sure that the flat end of the shaft is against
the plate.
6. Remove the front panel [D] from the stays ( x 6).
7. Remove the old belt [E] from the bottom, center, then the top.
NOTE:
1) Make sure the ribbed side of the new belt and pawl [F] are facing down.
2) Make sure the new belt is engaged at all three rollers.
B478R523.WMF
B478R524.WMF
[B]
[C]
[A]
[D]
[E]
[F]
To Next Page
