ADF (B140 SERIES/B064 SERIES ONLY)
B064 Series/B140 Series/G126 6-14 SM

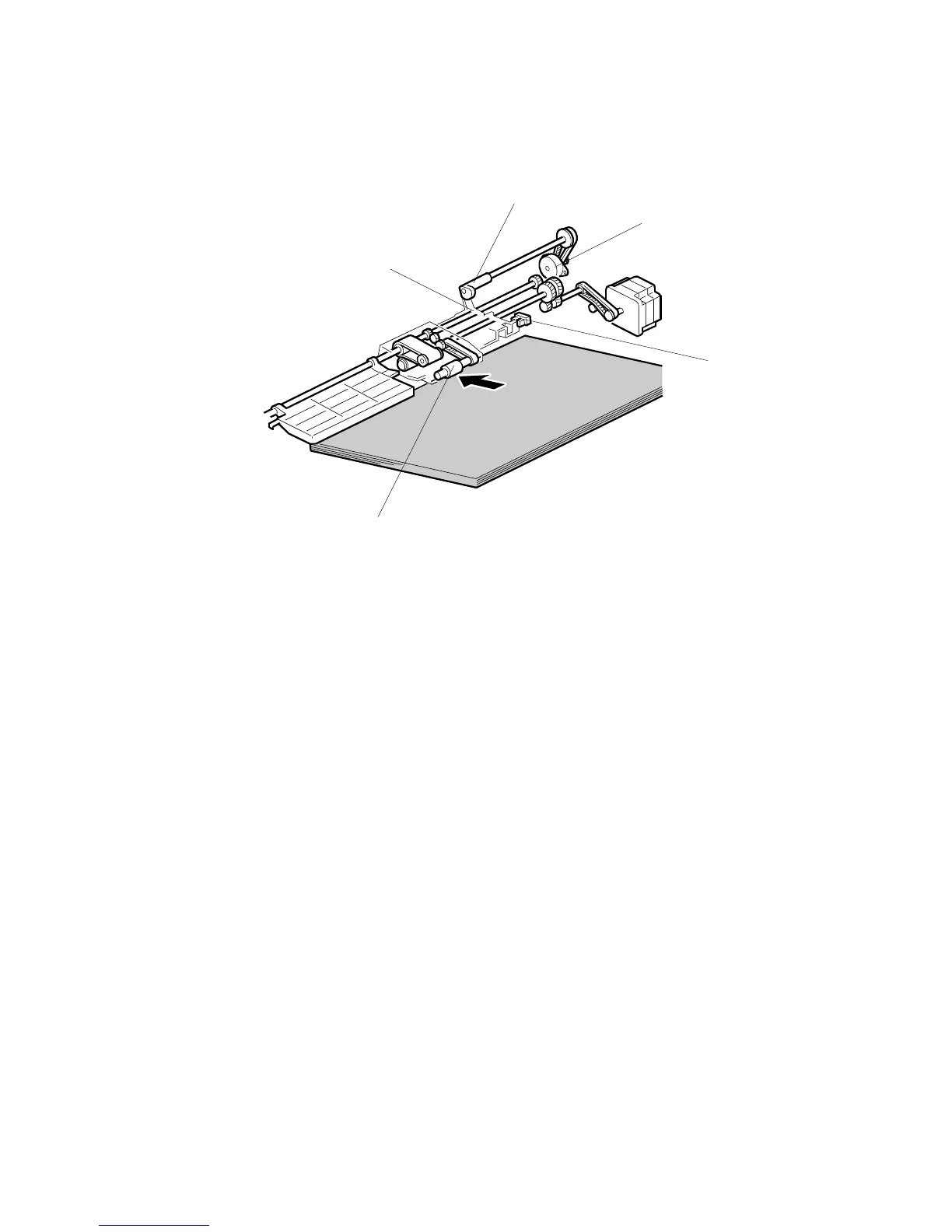

6.4.3 PICK-UP ROLLER LIFT
[A]: Pick-up roller lift motor
[B]: Cam
[C]: Pick-up roller release lever
[D]: Pick-up roller
[E]: Pick-up roller HP sensor
When there are no originals: The pick-up roller [D] remains up (this is the home
position).
When an original is placed on the tray: The original set sensor switches on, and
this switches motor [A] on. The cam [B] releases lever [C]. The lever rises and the
pick-up roller [D] drops onto the stack of paper. Then the pick-up roller feeds the
paper to the feed belt and separation roller.
B140D909.WMF
[A]
[B]
[C]
[D]
[E]
