DUPLEX UNIT
SM 6-131 B064 Series/B140 Series/G126
Detailed
Descriptions

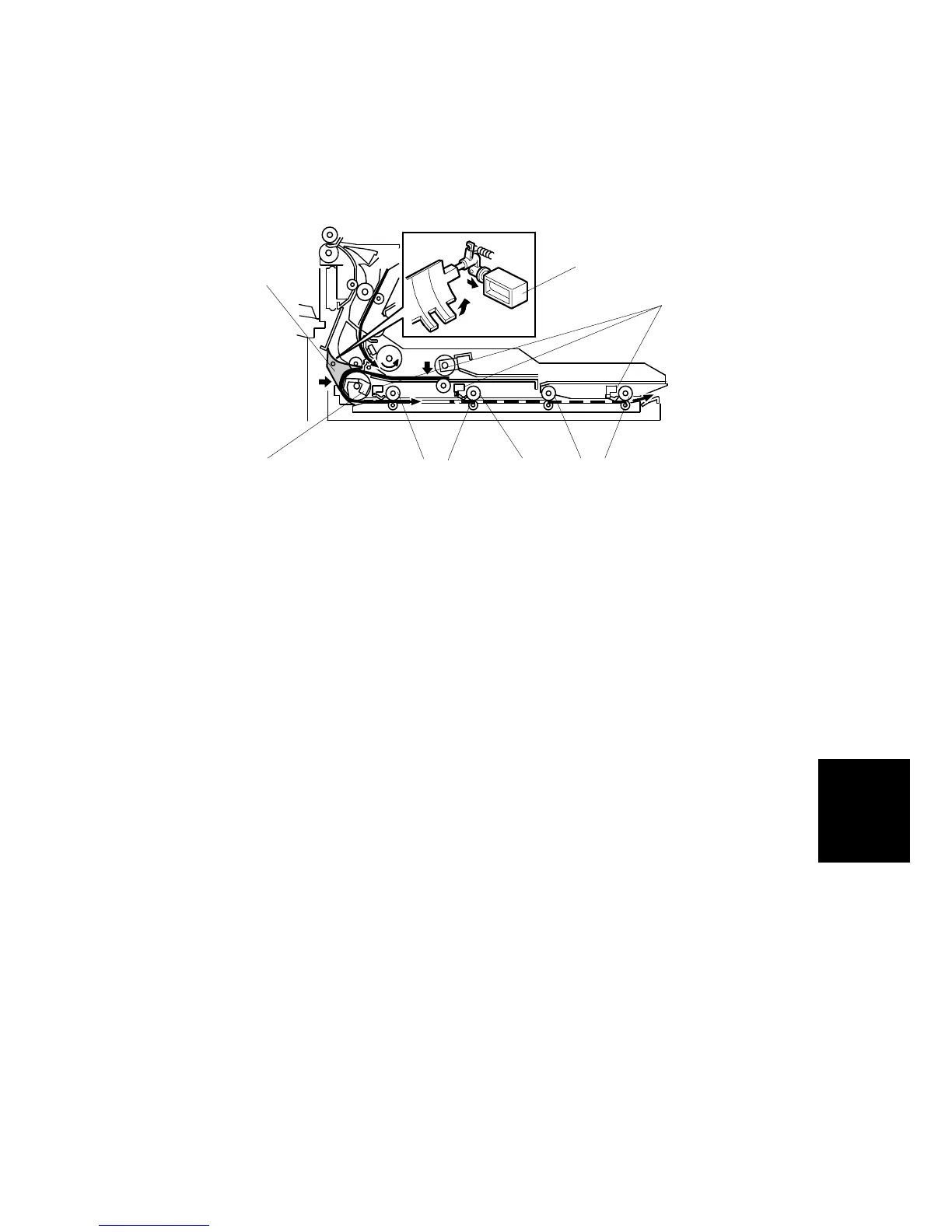

6.13.4 DUPLEX TRAY FEED
After inversion:
• If duplex mode is not selected, the duplex junction gate solenoid [A] does not
switch on to open the duplex junction gate [B]. The paper goes to the output
tray or finisher face down.
• If duplex mode is selected, after the paper leaves the inverter, the solenoid
[A] switches on and opens the junction gate [B]. The paper goes down to the
duplex tray.
For details of how the transport rollers [C, D], duplex transport clutch [E (not shown
here)], and duplex inverter sensor [F] control duplex feed, see 6.13.2.
Duplex transport sensors 1, 2, 3 [G] detect jams in the paper path.
B140D9C2.WMF
[A]
[B]
[C]
[E]
[D]
[F]
[G]
