ADF (B140 SERIES/B064 SERIES)
B064/B140 Series/G126 3-130 SM

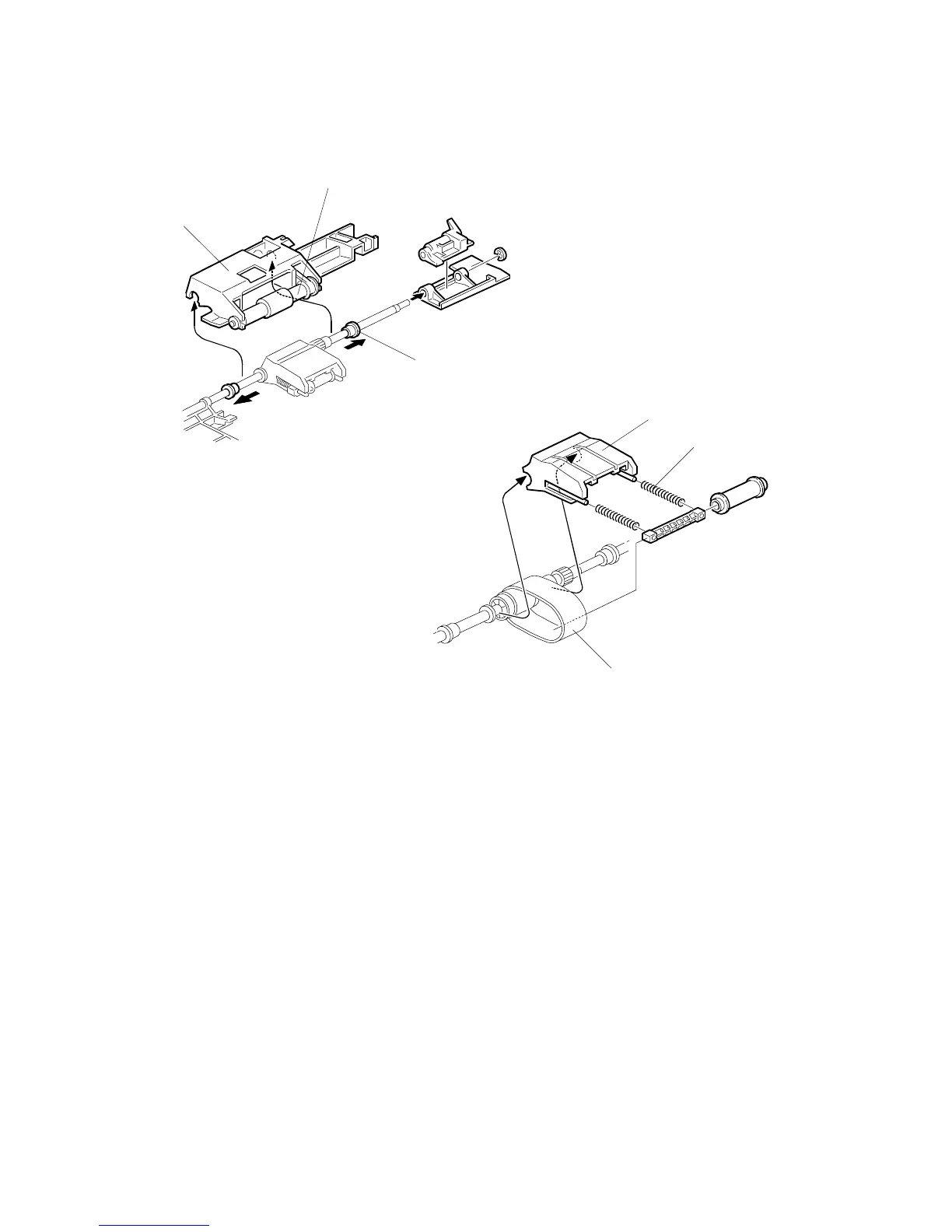

3.13.3 FEED BELT AND PICK-UP ROLLER
1. Remove the feed unit ( 3.11.8).
2. Remove the pick-up roller unit [A].
3. Remove the bushings [B].
4. Remove the pick-up roller [C].
NOTE: At re-assembly, make sure that the tab on the front guide plate is above
the pick-up roller.
5. Hold the feed belt holder [D] by the left and right sides, then carefully pull it off
the bushing. Do not let the springs [E] fall.
6. Remove the feed belt [F].
NOTE: When re-assembling, set the pick-up roller springs first, then follow this
procedure in reverse.
B140R868.WMF
B140R869.WMF
[A]
[B]
[C]
[D]
[E]
[F]
