DUPLEX UNIT
B064 Series/B140 Series/G126 6-130 SM

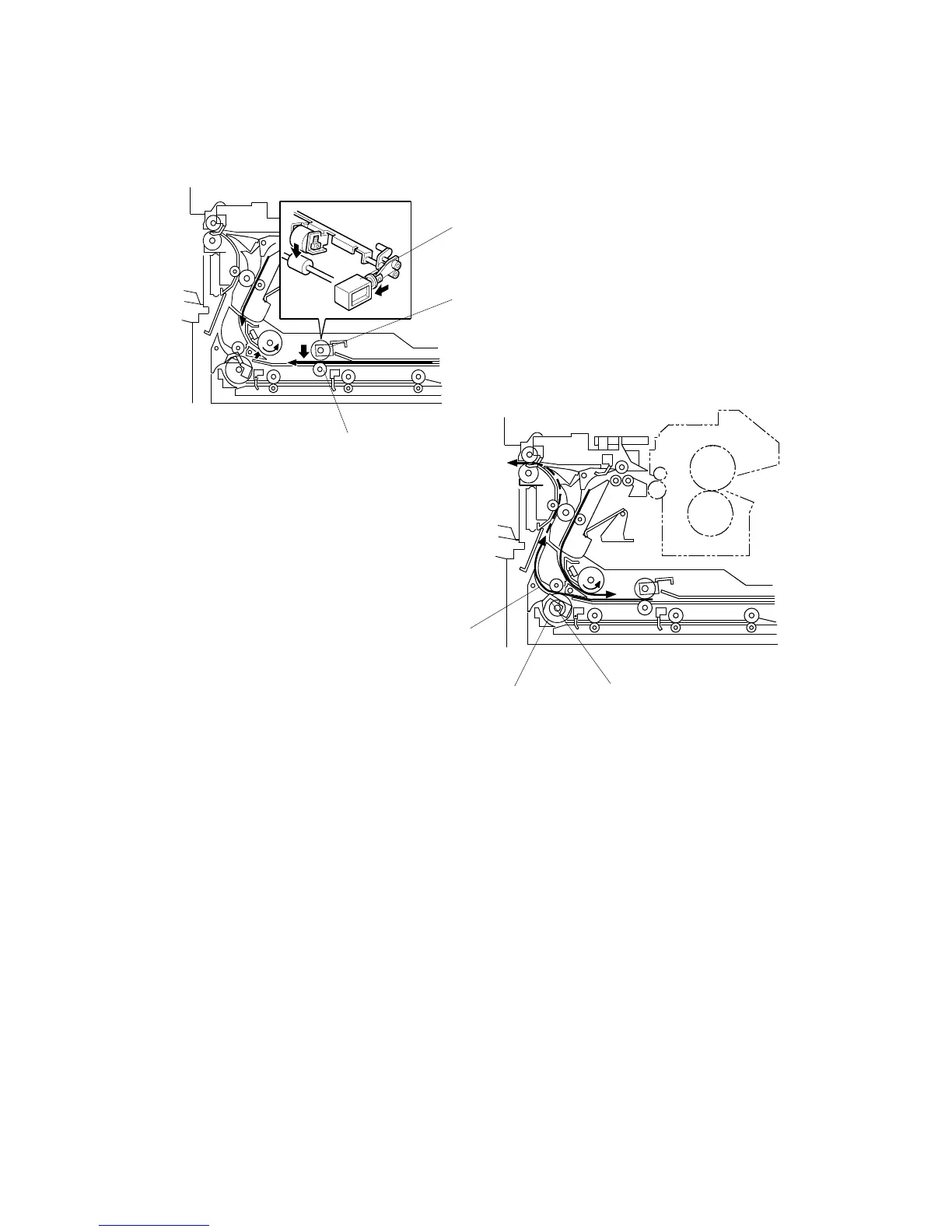

Inverter Feed-out
[A]: Reverse trigger roller solenoid
[B]: Reverse trigger roller
[C]: Reverse roller
[D]: Paper
[E]: Inverter exit roller
[F]: Duplex inverter sensor
After jogging, each page is fed back as follows:
• Solenoid [A] pushes down roller [B].
• Roller [B] contacts roller [C], catching the paper between the two rollers.
• Roller [C] always turns counter-clockwise, and feeds the paper [D]
backwards to roller [E].
When the leading edge of the paper, now caught by roller [E], passes sensor [F],
solenoid [A] switches off and roller [B] returns to its home position.
B140D9C0.WMF
B140D9C1.WMF
[A]
[B]
[C]
[D]
[E]
[F]
