REPLACEMENT AND ADJUSTMENT
B478/B513/B531 12 SM
3.5.2 UPPER TRAY PAPER LIMIT AND EXIT SENSOR
Upper Tray Paper Limit Sensor
1. Remove the top cover.
2. Remove the sensor cover [A] ( x 2).
3. Remove the sensor bracket [B] ( x 1).
4. Replace the upper tray paper limit sensor [C] ( x 1).
Upper Tray Exit Sensor
5. Remove the sensor bracket [D] ( x 1).
6. Replace the upper tray exit sensor [E] ( x 1).

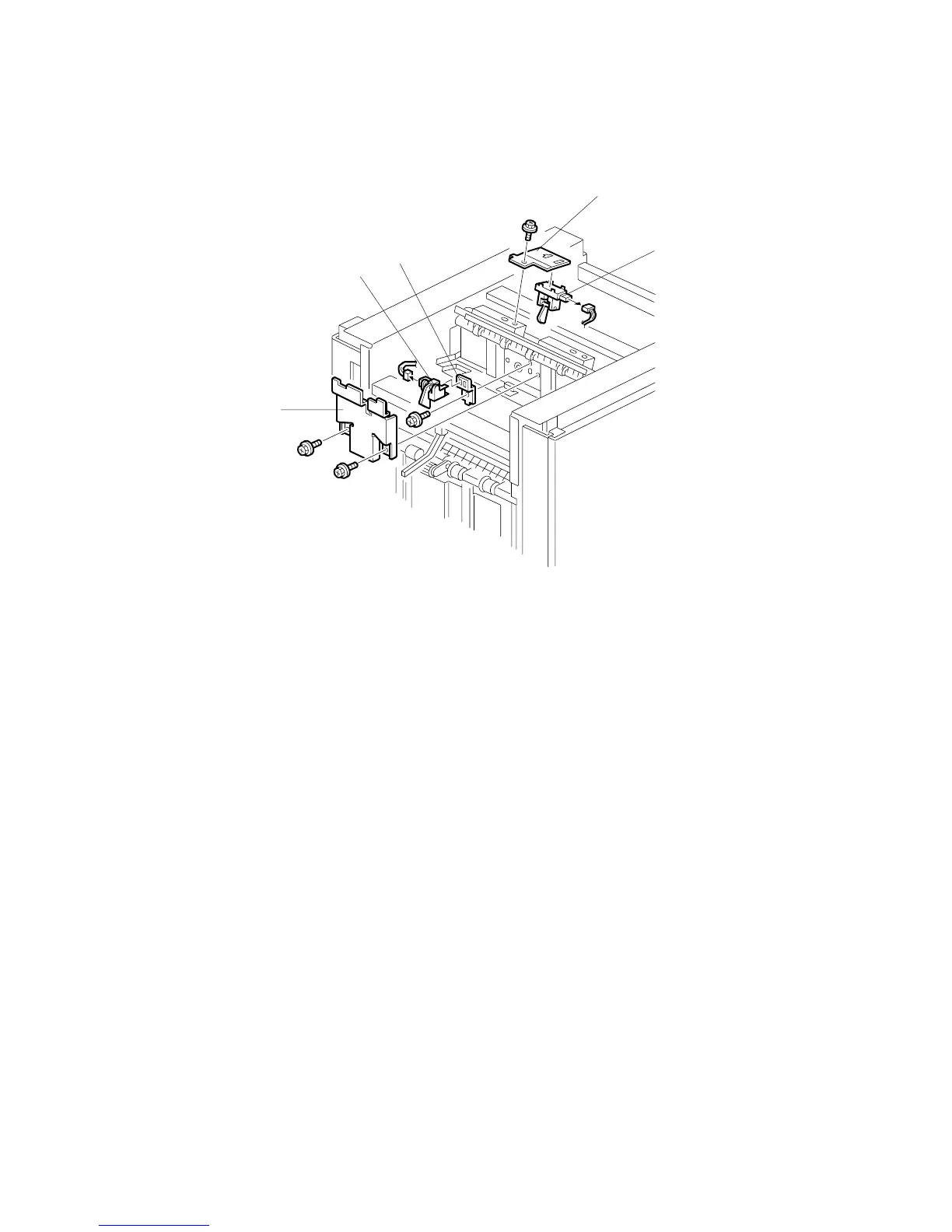

B478R510.WMF
[C]
[A]
[D]
[E]
[B]
