ADF (B140 SERIES/B064 SERIES)
B064/B140 Series/G126 3-134 SM
3.13.7 ORIGINAL WIDTH, INTERVAL, AND SKEW CORRECTION
SENSORS

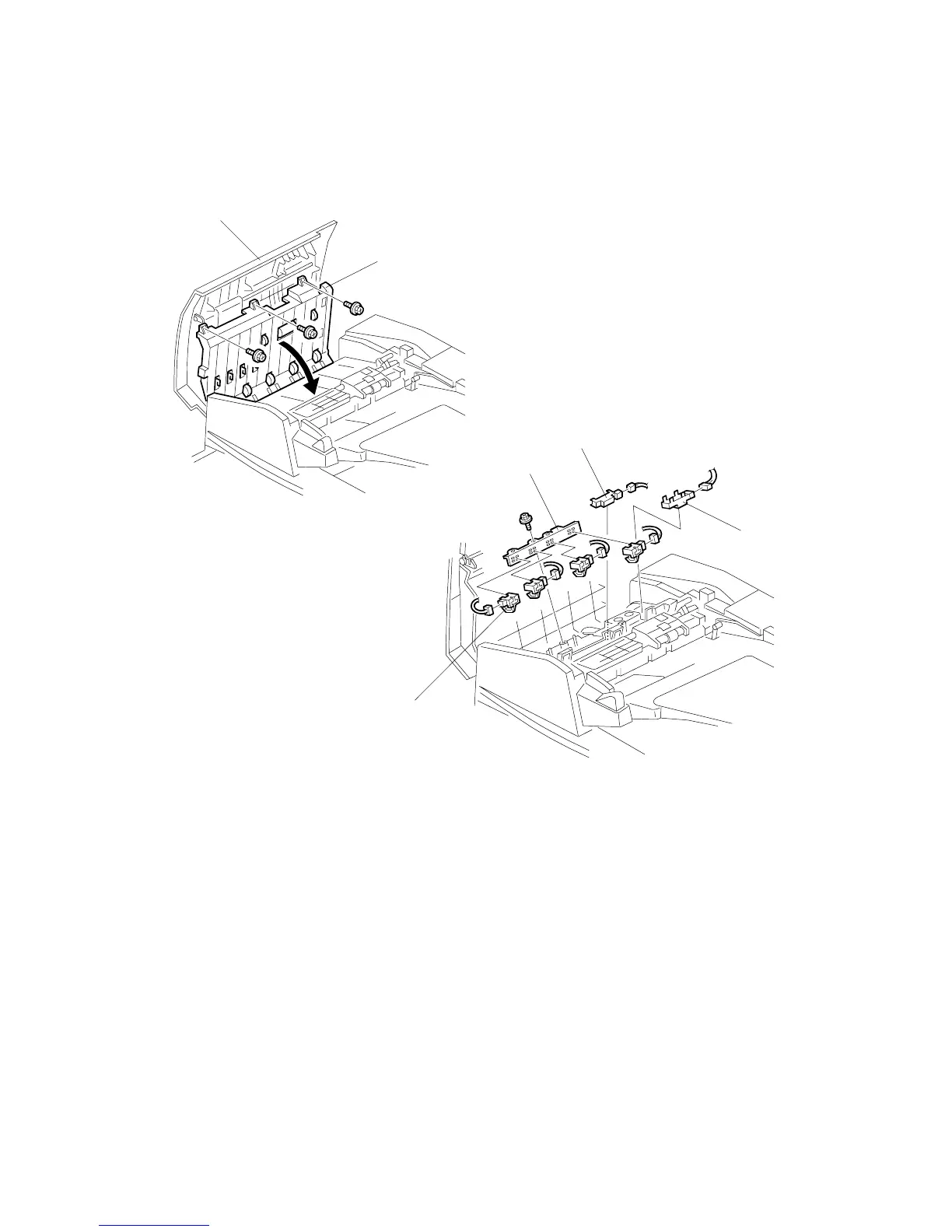

[A]: Open the feed cover.
[B]: Guide plate ( x 3)
[C]: Width sensor guide plate ( x 1)
[D]: Original width sensors (x 4)
[E]: Interval sensor ( x 1)
[F]: Skew correction sensor ( x 1)
B140R874.WMF
B140R875.WMF
[A]
[B]
[C]
[D]
[E]
[F]
