SADDLE-STITCH STAPLER REPLACEMENT
B468/B469/B674 8 SM
1.9 SADDLE-STITCH STAPLER REPLACEMENT
1. Remove the cover [A] ( x 1).
2. Remove the staple unit motor mount
[B] ( x 4,  x 2).
3. Remove the old booklet stapler
motors ( x 3 each  x 1 each).
4. Attach the left booklet stapler motor
[C] and right stapler motor [D] ( x 3
each).
NOTE: Do not tighten the screws.
5. Remove the old booklet staplers
( x 4 each,  x 1 each).
6. Attach the booklet stapler [E] and
the stapler [F] ( x 4 each,  x 1
each) and tighten the screws.

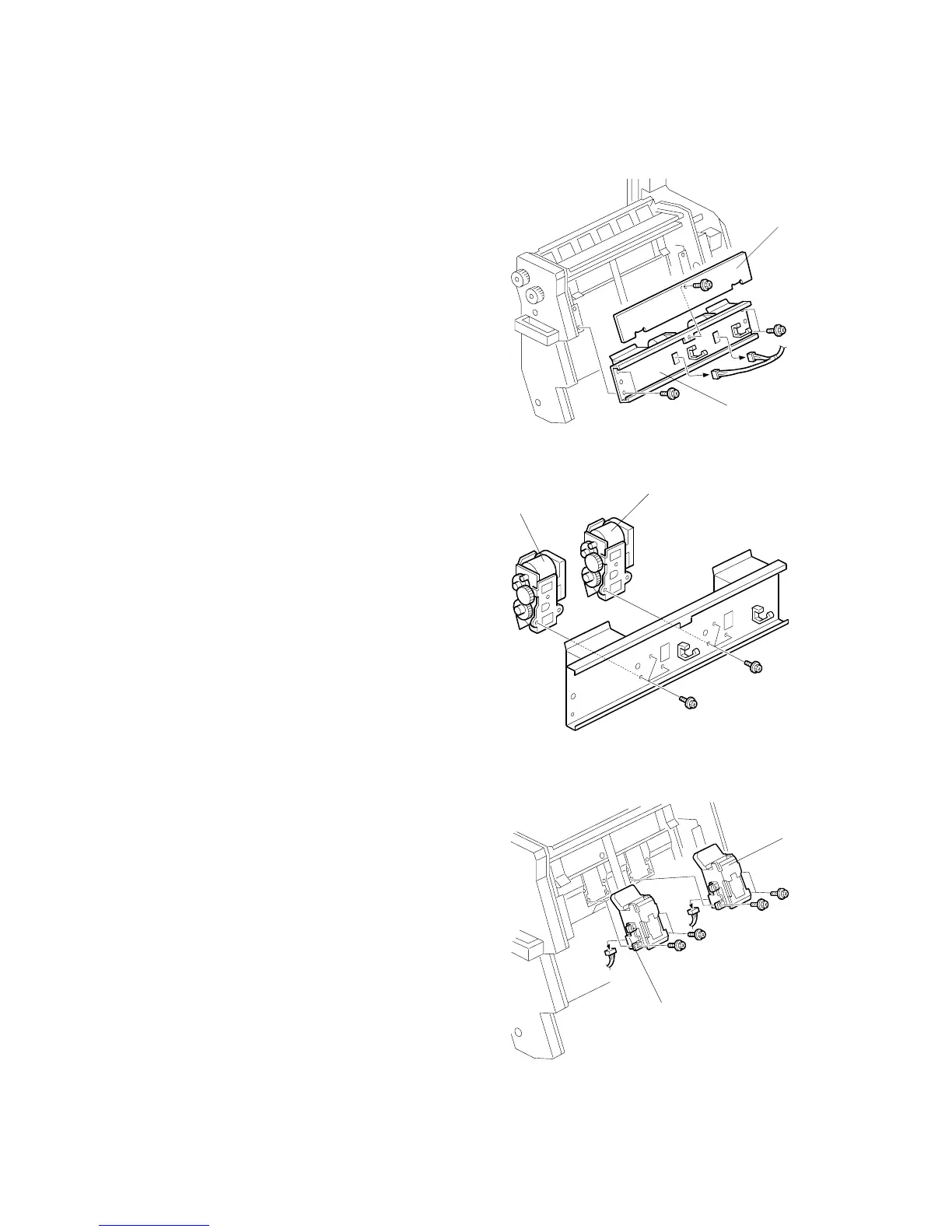

B468R101.WMF
B468R102.WMF
B468R103.WMF
[A]
[B]
[C]
[D]
[E]
[F]
