TRANSFER BELT UNIT
SM 3-57 B064 Series/B140 Series/G126
Replacement
Adjustment
3.8.3 TRANSFER ROLLER CLEANING BLADE
Transfer belt unit ( 3.8.1)
Disassemble the transfer belt unit ( 3.8.1)

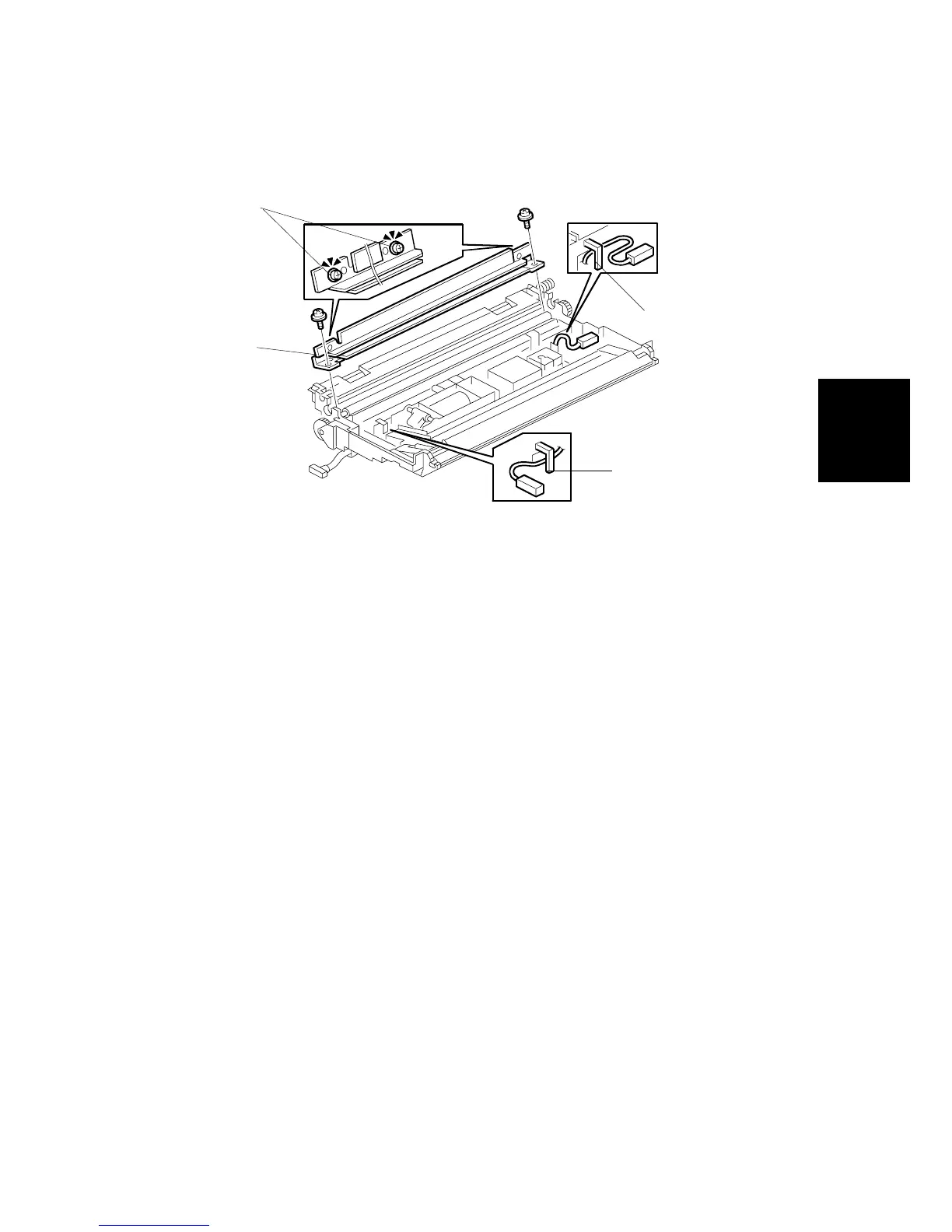

[A]: Transfer roller cleaning blade ( x 2, x 2)
NOTE:
1) Never remove the inner lock screws [B] of the transfer roller cleaning
blade. When re-assembling, make sure that the clamps [C] and [D] are
arranged as shown above to avoid contact with the release lever.
2) The transfer roller cleaning blade should always be replaced when
the transfer belt is replaced.
3) Never touch the edge of a new transfer roller cleaning blade. The edge
of the blade is dusted with setting powder. If the setting powder is
removed accidentally, dust the edge of the blade with toner. This is
especially important when only the transfer roller cleaning blade must be
replaced without replacing the transfer roller.
4) Work carefully around the transfer power pack located inside the
transfer belt unit, especially when cleaning with an vacuum cleaner, to
avoid damaging the power pack with static electricity.
B140R976.WMF
[A]
[B]
[C]
[D]
To Next Page
