DRUM UNIT
B064 Series/B140 Series/G126 3-32 SM
3.6 DRUM UNIT
3.6.1 DEVELOPMENT UNIT REMOVAL
Removal
[A]: Shutter cover ( x 1).
[B]: Lock screw
[C]: Toner bottle.
• Pull the toner bottle holder out and swing the toner bottle holder to the right.
[D]: Face plate (knob x 1, x 2)
NOTE: After re-installation, the tab [E] should be behind the stay and its pin
below should be in the open track below.
[F]: Close the supply pipe shutter
[G]: Development unit ( x 2 [H])
• Allow the unit to slip to the right, then slowly pull it out of the machine.
NOTE: If the LCT is installed, you may need to disconnect it so the front door
can open far enough to allow removal of the development unit.

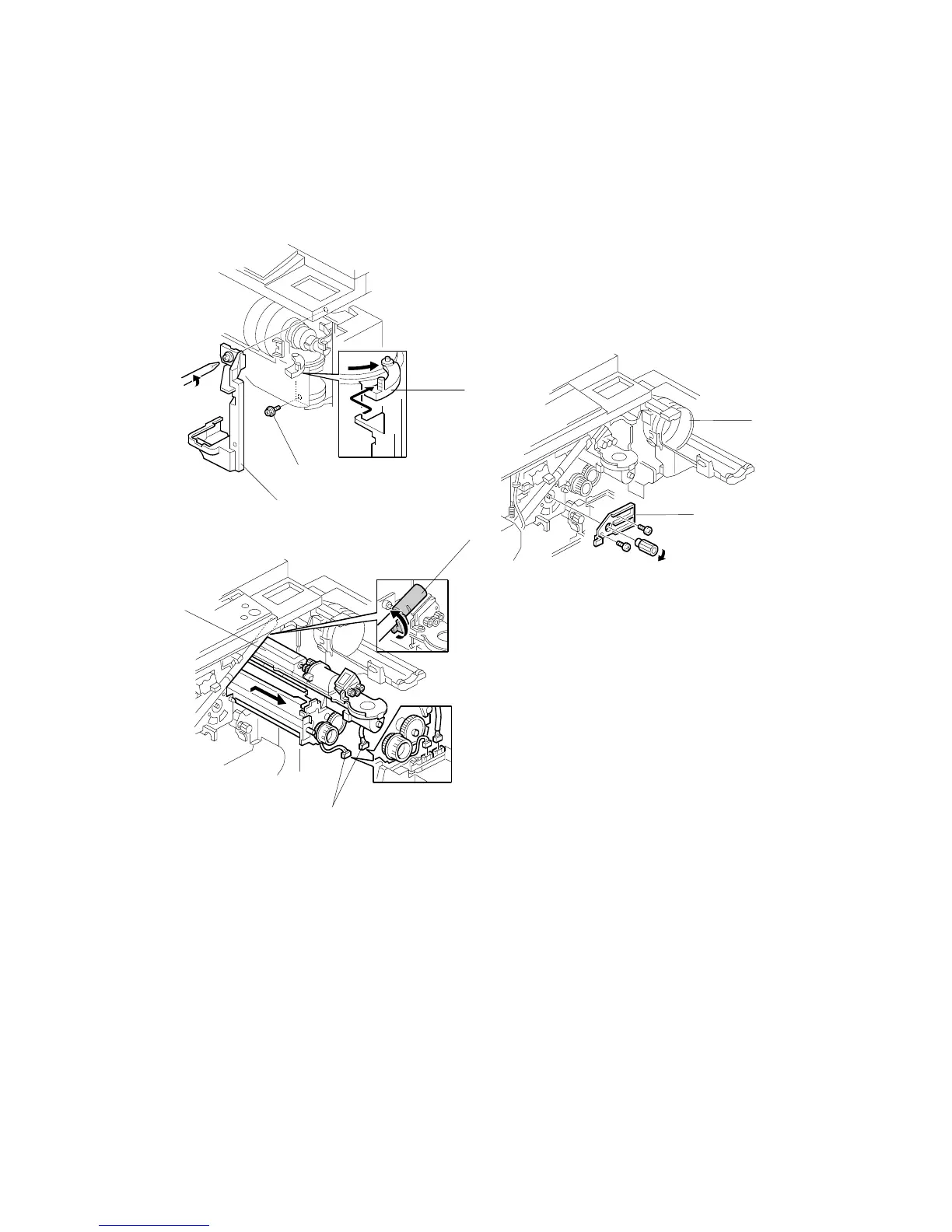

B140R935.WMF
B140R936.WMF
B140R937.WMF
[D]
[C]
[F]
[H]
[G]
[A]
[B]
[E]
