FUSING UNIT
SM 3-79 B064 Series/B140 Series/G126
Replacement
Adjustment
B140 Series

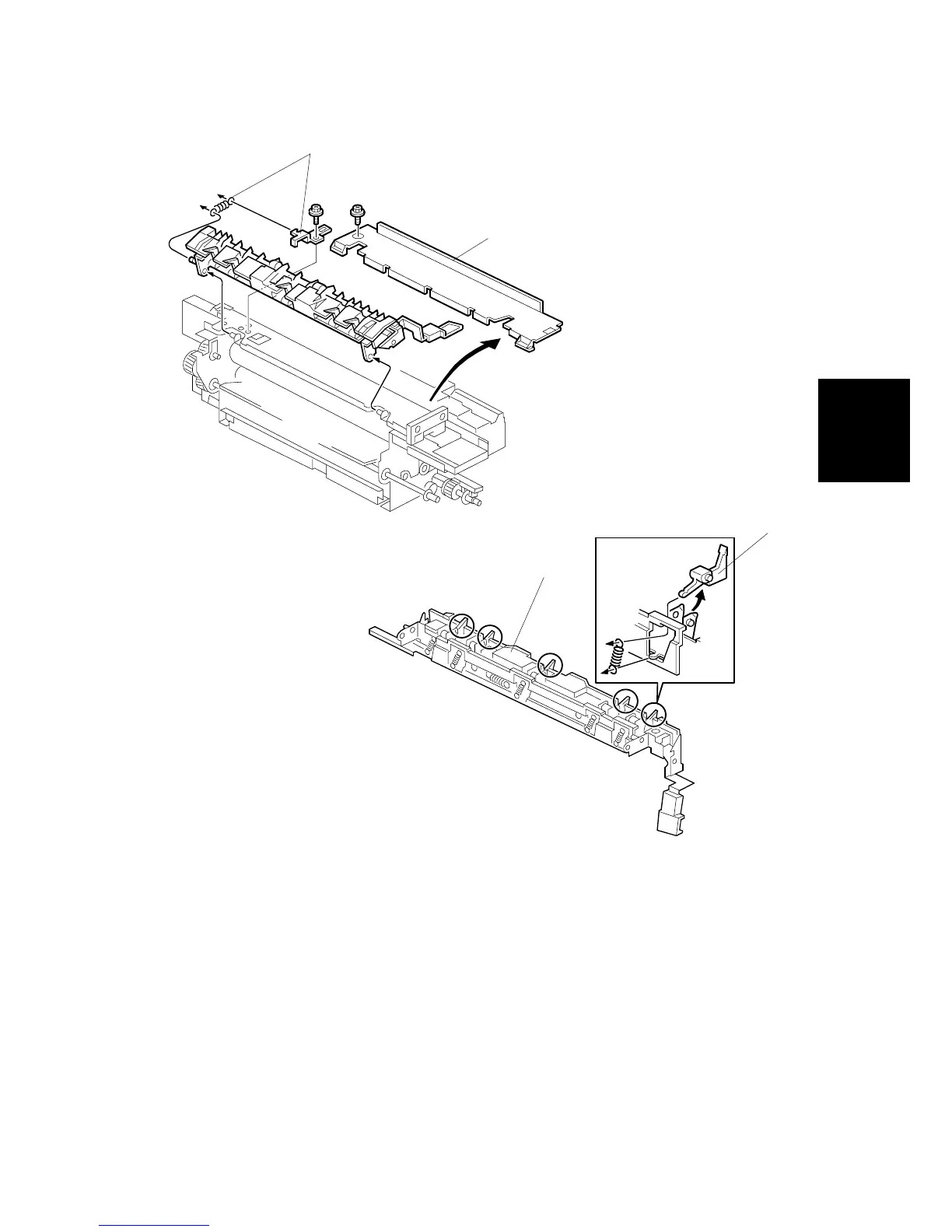

Remove the fusing unit ( 3.9.1)
[A]: Top cover ( x 1)
[B]: Bracket ( x 1, spring x 1)
[C]: Inner cover
[D]: Stripper pawl (spring x 1). Open the arms to release the stripper pawl, and
remove it.
B140R517.WMF
B140R523.WMF
[C]
[D]
[A]
[B]
