MFP OPTIONS: B064 SERIES
SM 1-91 B064 Series/B140 Series/G126
Installation
Installation Procedure
CAUTION
Switch the machine off and unplug the machine before starting the
following procedure.
1. Remove the rear upper cover ( x 2).
2. Remove the controller cover ( x 9).
3. Remove the slot cover [A] ( x 2).
4. Attach the IEEE1394 board [B].
5. sUse the provided cable to connect the machine and the computer.
6. Make sure that the jumper is on TB2 [C].
7. Print a system settings list and confirm that the machine correctly recognizes
the interface.

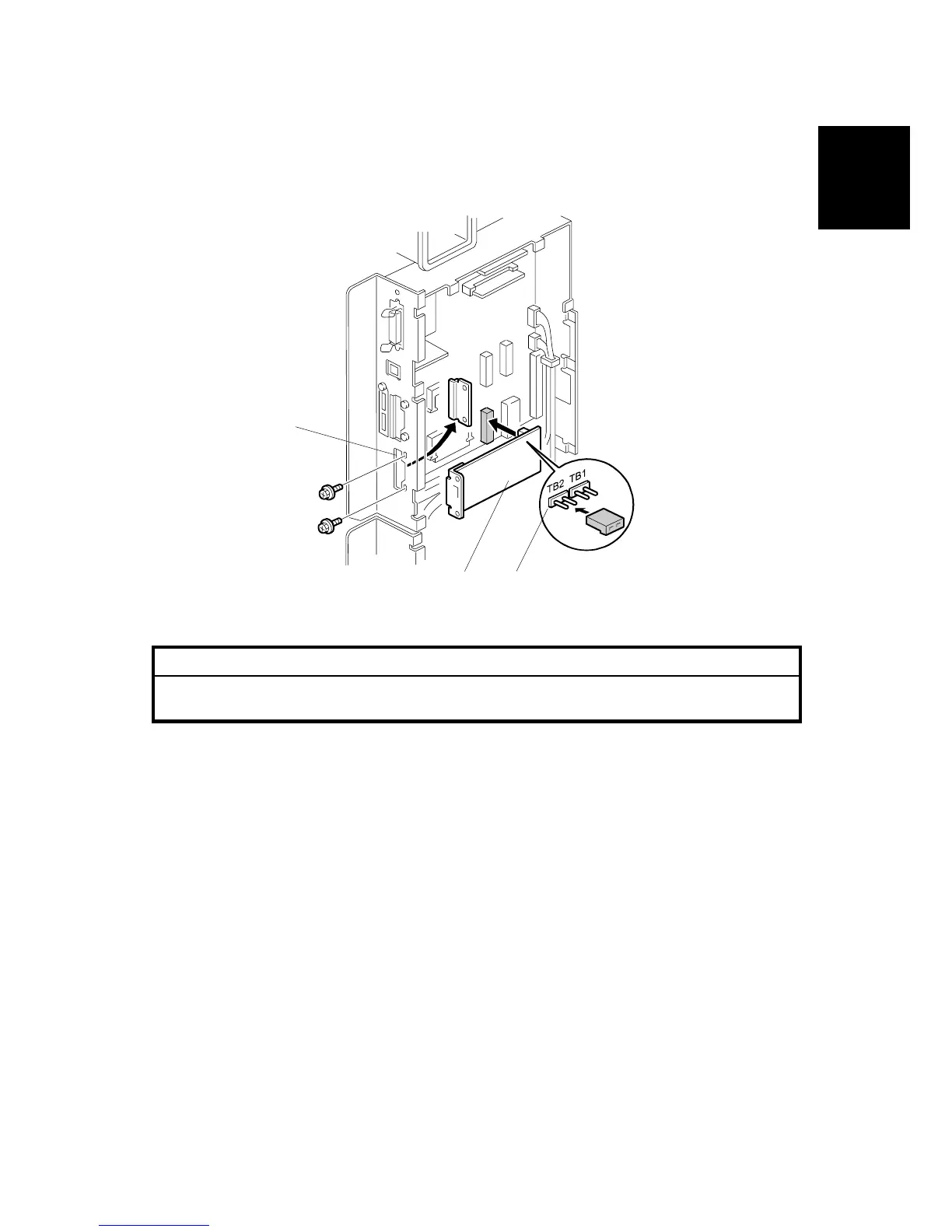

B064I205.WMF
[A]
[C][B]
